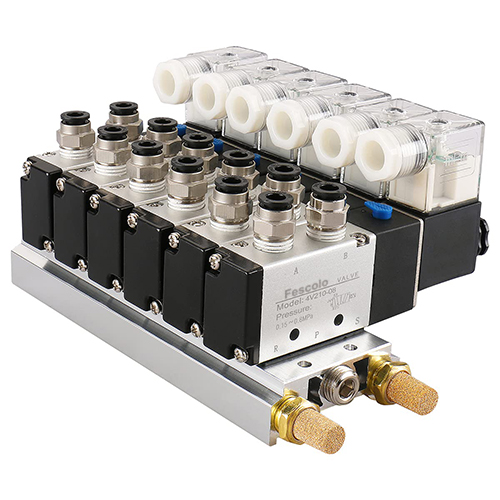

5 way 2 position pneumatic solenoid valve

5 way 2 position pneumatic solenoid valve is an automatic basic component used to control fluids and belongs to the actuator; it is not limited to hydraulic and pneumatic.

The working principle of the solenoid valve, the solenoid valve has a closed cavity, and there are through holes in different positions. Each hole leads to a different oil pipe. When the valve body is energized, it will be attracted to which side. By controlling the movement of the valve body, it blocks or leaks different oil discharge holes, and the oil inlet hole is normally open, and the hydraulic oil will enter different oil discharge pipes, and then pass through The pressure of the oil pushes the piston of the oil cylinder, the piston drives the piston rod, and the piston rod drives the mechanical device to move.

When installing the solenoid valve, it should be noted that the arrow on the valve body should be consistent with the flow direction of the medium. Do not install in places where there is direct dripping or splashing. The solenoid valve should be installed vertically upwards. The solenoid valve should be guaranteed to work normally within the fluctuation range of the power supply voltage of 15%-10% of the rated voltage.

5 way pneumatic valve and fast acting air solenoid valve have similar functions. The common 5 way pneumatic valve has 4V Series 2positions/5ways or 3positions/5ways Solenoid Valve, 5V Series 2positions/3ways or 2positions/5ways Solenoid Valve.

For more information, please feel free to Contact with us.
