Adjustable pneumatic cylinder

The adjustable pneumatic cylinder is a cylindrical metal part that guides the piston to reciprocate linearly in the cylinder.

The adjustable air cylinder is composed of a cylinder barrel, an end cover, a piston, a piston rod and a seal. The inner diameter of the cylinder barrel represents the output force of the cylinder, the end cover is provided with an intake and exhaust port, and some are also provided with a buffer mechanism in the end cover. The piston is the pressurized part in the cylinder. In order to prevent the left and right cavities of the piston from blowing gas from each other, a piston sealing ring is provided.

The piston rod is the most important force-bearing part in the cylinder. Usually high carbon steel is used with hard chrome plating on the surface, or stainless steel is used to prevent corrosion and improve the wear resistance of the seal. The sealing of the parts in the rotary or reciprocating motion is called dynamic seal, and the seal of the stationary part is called static seal.

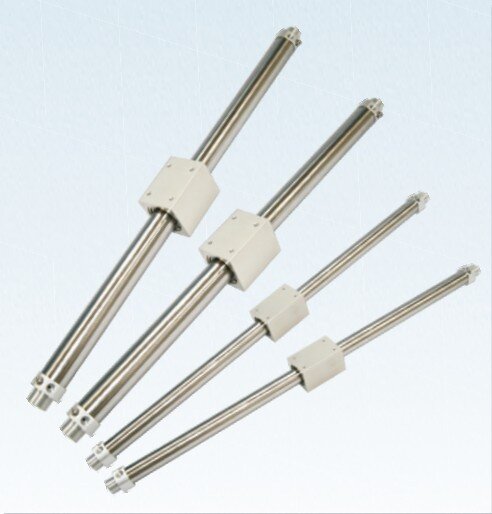

Air cylinders pneumatics are generally used in the fields of printing (tension control), semiconductors (spot welding machines, chip grinding), automation control, robots and so on. Common pneumatic ram cylinders are:MAL Series Aluminum Cylinder, CY1B Series Basic Type Rodless Cylinder, CY1S Series Slider Type (Slide bearing) Rodless Cylinder.

For more information, please feel free to Contact us.

What is an Adjustable Pneumatic Cylinder?

An adjustable pneumatic cylinder is a type of cylinder designed to offer flexibility in its stroke length or operational settings. Unlike standard cylinders with fixed parameters, adjustable pneumatic cylinders allow users to modify certain characteristics, such as the stroke length, cushioning, or pressure limits, making them ideal for applications where adaptability is essential.

Key Features of Adjustable Pneumatic Cylinders

1. Adjustable Stroke Length:
   These cylinders can be modified to achieve different stroke lengths by adjusting external or internal mechanical stops. This feature allows the cylinder to accommodate varying tasks without requiring multiple cylinder replacements.

2. Variable Cushioning:
   Many adjustable cylinders include adjustable end-position cushioning. This feature allows the user to fine-tune the deceleration of the piston near the end of its stroke, reducing impact and extending the life of the cylinder.

3. Customizable Pressure Settings:
   Some adjustable cylinders allow the user to alter the pressure levels, enabling controlled force output depending on the application's requirements.

4. Compact and Modular Design:
   These cylinders often come with a compact design and modular components, which make it easy to integrate into existing systems and adapt to changing operational demands.

Applications of Adjustable Pneumatic Cylinders

1. Material Handling:
   Adjustable stroke lengths allow precise positioning of materials, ensuring smooth handling in dynamic environments like conveyor systems.

2. Assembly Lines:
   The ability to fine-tune stroke lengths and cushioning makes these cylinders perfect for tasks that require precision, such as component assembly or inspection.

3. Packaging Equipment:
   Adjustable settings ensure compatibility with various package sizes and weights, providing flexibility in production lines.

4. Testing Systems:
   Adjustable pneumatic cylinders are widely used in testing rigs where variable stroke lengths and controlled force are needed to simulate different operational conditions.

Advantages of Adjustable Pneumatic Cylinders

• Versatility: Easily adaptable to a wide range of applications.

• Cost-Efficiency: Reduces the need to purchase multiple cylinders for different tasks.

• Improved System Longevity: Adjustable cushioning minimizes wear and tear.

• Increased Productivity: Quick adjustment saves time during system setup or process changes.

Why Choose Fokca (Fescolo) Adjustable Pneumatic Cylinders?

Fokca (Fescolo) specializes in offering customizable pneumatic cylinders, including adjustable models tailored to meet specific customer needs. Their cylinders are designed with precision engineering and durable materials, ensuring reliability in demanding industrial environments. Whether it's for assembly, packaging, or testing, Fokca's adjustable pneumatic cylinders deliver flexibility, efficiency, and consistent performance.
