We all know that air control valves, also known as directional control valves, are indispensable in regulating pneumatic systems.Air control valves are used to manage and control the flow of compressed air or other inert gases in pneumatic systems, specifically by changing the flow rate and pressure of gases.
Since it has such a significant role, how does the specific air control valve work?
In this comprehensive guide, we will explore all the information you need to know about air control valves, including their working principles, types, advantages, and practical applications.
During the operation of the air control valve, the piston of the air control valve is usually driven back and forth in the following three ways to achieve external output power.
Electromagnetic drive: In common air control valves, electromagnetic solenoids are used to move the internal components of the valve.
When the solenoid is energized, it generates a magnetic field that moves the plunger or spool inside the valve, opening or closing the flow path.
Manual control: In some systems, a lever or dial can be used to manually adjust the air control valve to regulate the airflow.
Pneumatic drive: Pneumatic valves can also be driven
y the pressure of the air itself. When the pressure increases, the valve components can be pushed to open or close the air path.
The following is an example of electromagnetic drive, which specifically introduces the operation process of air control valves.
The core function of the 5/2 valve is to achieve switching control of the two directional actions of double acting actuators (such as double acting cylinders).
Through the conversion of two positions, air is orderly guided to the output port, completing complex mechanical actions.

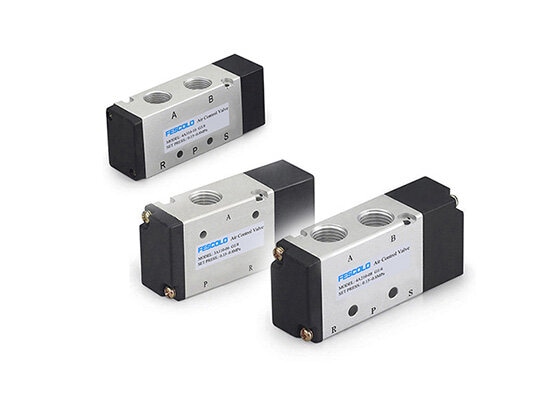

5/2 air control valve is a directional valve with five ports and two working positions, widely used to control the reciprocating motion of double acting cylinders.

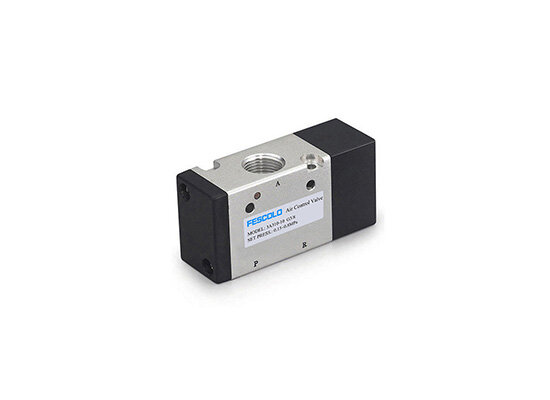

Compared with the 3/2 valve, it can control the airflow to switch between two output directions, achieving forward and reverse actions of the cylinder.

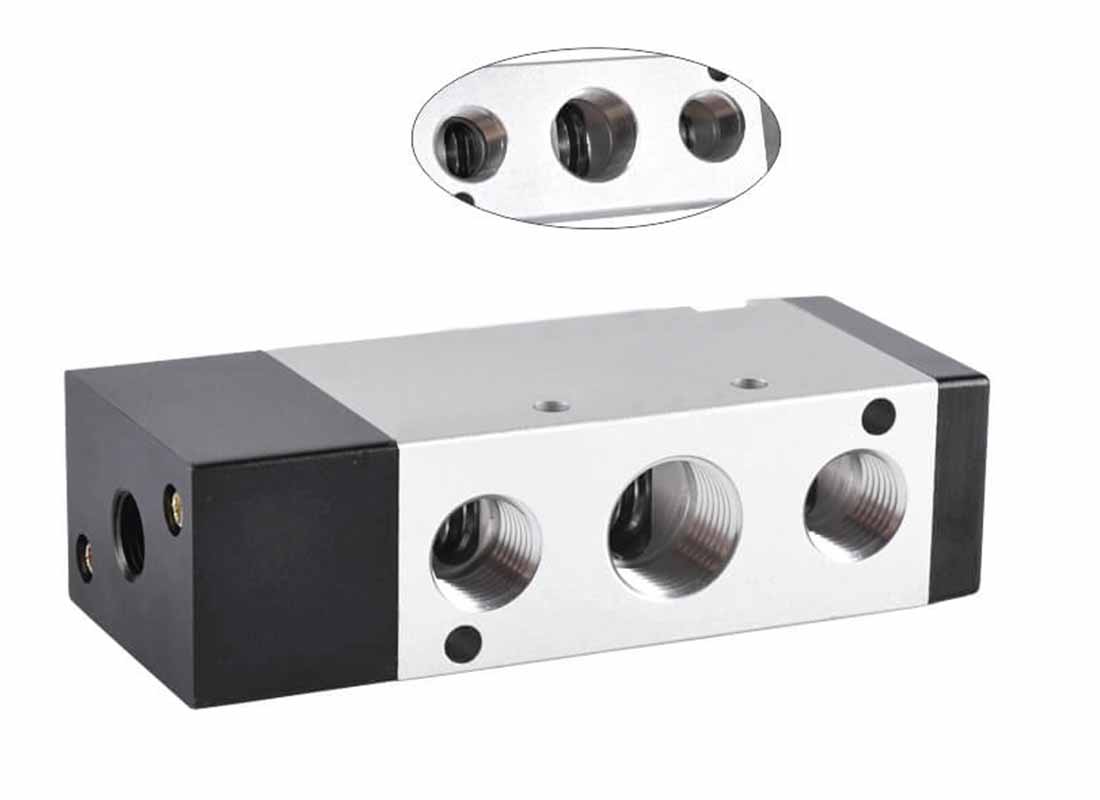

P (Port 1): Compressed air input port
A (Port 2)&B (Port 4): Output ports, connecting the two ends of the cylinder
R (Port 3)&S (Port 5): Exhaust ports, corresponding to the exhaust of A and B
Working status one (inactive, normally closed):
Compressed air enters the valve body from the P end.
The internal valve core is in the default position, at this time:
Air flows from the P → A end, pushing the cylinder piston forward (or extending).
The air at the B end is discharged through S (port 5)
In this state, the cylinder completes a directional action.
Working state two (activated state):
When the valve receives an activation signal (such as electromagnetic coil power on or gas signal input), the internal valve core switches to the second position.
At this moment:
Air flows from the P → B end, pushing the cylinder piston to move in the opposite direction (or retract).
The air at end A is discharged through R (port 3) .
The cylinder begins to move in the opposite direction.
After the activation signal is removed, if it is a single electronic control structure (such as with spring reset), the valve core will automatically return to its original position.
If it is a dual electronic control structure (without springs), another electrical signal is required to switch the valve core back to its initial state.
The two structures have different control methods, but the principle is the same - switching the supply and exhaust directions
of the two output terminals to control the forward and reverse movement of the cylinder.
As the core control component in pneumatic systems, air control valves are widely used in industrial automation,
machinery manufacturing, packaging, food, electronics and other fields due to their high responsiveness, simple structure,
safety and environmental protection, and convenient maintenance advantages. Here are its main advantages:
◆ Quick response
◆ Simple structure and small size
◆ High safety
◆ Easy to operate and flexible in control
◆ Low maintenance cost
◆ Environmentally friendly and clean
◆ Strong adaptability
◆ Easy to implement automatic control and integration
◆ Double acting cylinder control ✅
◆ Automated robotic arm ✅
◆ Switching control in packaging, assembly, and handling equipment ✅
◆ Pneumatic fixtures and actuator control ✅
As a leading manufacturer in the field of pneumatic systems, Fokca offers a variety of high-quality air control valves.
Our products are durable, efficient and reliable, ensuring the needs of customers in various industrial applications
The air control valves we have chosen include:
Solenoid valve：
There are several types of solenoid valve products, including Pneumatic Solenoid Valve, High Quality Solenoid Valve, Air Control Valve, and Manifol
Air control components：
We offer several different types of valves, including 2-way Solenoid Valve, Solenoid Valve, Mechanical Valve, Pneumatic Control Valve, etc.
Air handling unit：
Our air source treatment device consists of a filter, regulator, and lubricator, ensuring a clean, regulated,
and well lubricated air supply for the pneumatic system, thereby improving overall efficiency and service life.
Cylinder：
Fokca's cylinder series includes standard, compact, double bar, and multi position cylinders, designed to meet various industrial automation needs.
For example, ISO 6431 Pneumatic Cylinder Airtac Standard Pneumatic Cylinder
Pneumatic accessories：
We also offer a complete set of pneumatic accessories, including metal fittings, push in fittings, PU pipes, quick couplings, and more.
Why choose Fokca air control valve?
✅ High quality materials - using top-notch materials and advanced engineering manufacturing.
✅ Support customization - a comprehensive selection of pneumatic components tailored to industry needs.
✅ Technical expertise - Our team provides guidance and support for customer selection.
✅ Fast and reliable delivery - ensuring on-time delivery to support operational efficiency.
Fokca is your trusted partner for durable, efficient, and cost-effective pneumatic control solutions.
Get in touch with Fokca
If you need to learn about our full range of air control valves and solutions, please contact us immediately.
Enhance your pneumatic system with Fokca's advanced and reliable air control valves! https://www.fescolo.com/air-control-valve/
