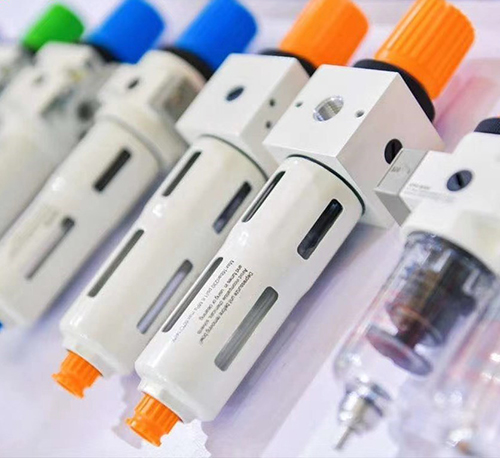

Air filter and pressure regulator

Air filter and pressure regulator is an element that performs work through the force generated by the pressure or expansion of the gas, that is, a mechanism that converts the elastic energy of the compressed air into kinetic energy.

The composition of the airline filter regulator includes an air filter, a pressure reducing valve and a lubricator. Some brands of solenoid valves and cylinders can achieve oil-free lubrication (the lubrication function is achieved by grease), so there is no need to use a lubricator! Filter The pressure is generally 50-75μm, and the pressure regulation range is 0.5-10Mpa. If the filter precision is 5-10μm, 10-20μm, 25-40μm, and the pressure regulation is 0.05-0.3Mpa, 0.05-1Mpa, the three pieces are connected without pipes. The resulting assembly is called a F.R.L.

Compressed air regulator filter has a simple structure, light weight, and simple installation and maintenance. The medium is air, which is less flammable than hydraulic medium, so it is safe to use. The central task of the maintenance work of the air source processor is to ensure the supply of clean and dry compressed air to the pneumatic system, to ensure the air tightness of the pneumatic system, to ensure that the oil mist lubricating components get the necessary lubrication, and to ensure that the pneumatic components and systems get the specified working conditions ( Such as the use of pressure, voltage, etc.) to ensure that the pneumatic actuator works according to the predetermined requirements. Common air source processors are: OFR Series Air Filter & Regulator, OU Series FR.L Combination, OL Series Air Lubricator.
