AR series ARO210 standard Quick Coupling

AR series ARO210 standard Quick Coupling


Features:

 Comply with ARO210, Parker 50 series and Orion 44510 series.

 Manual sleeve and single shut off type.

 It is usually made of carbon steel with zinc plated, or brass with acid pickling on the surface, and the internal element is structured of brass. At present, Fokca provides 1/4” flow rate body size only.

 This series of quick couplings adopts a structure of 4 steel balls and the maximum working pressure is 2.0MPa. It belongs to medium-pressure couplings in pneumatic quick couplings. It is recommended to use carbon steel nickel plated nipples or plugs.

 The commonly used sealing material is NBR, in addition,fluorine rubber FKM, EPDM and other sealing materials are available.

 Generally applications include: air compressors, pneumatic tools, lawn mowers, spraying and other industries.



Inquire Now

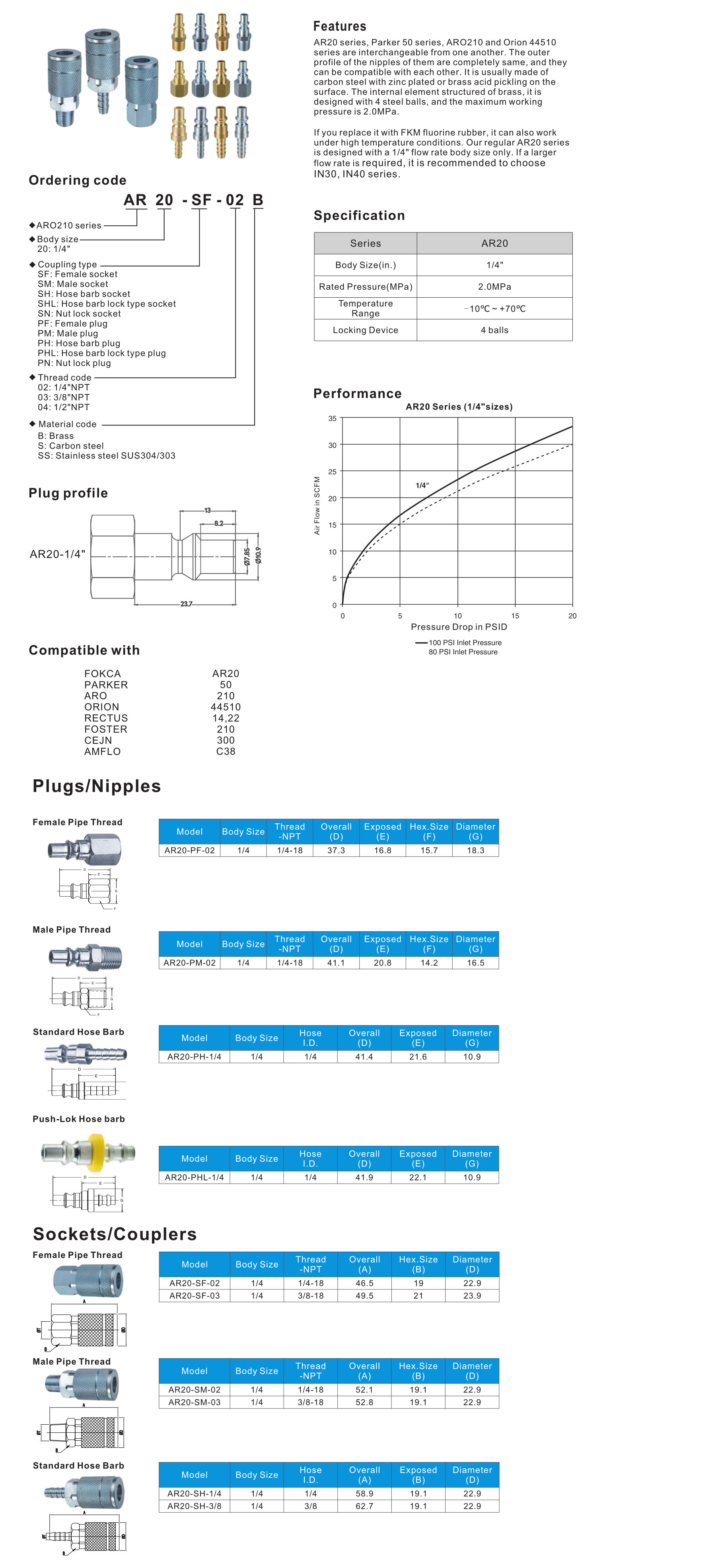

  • Dimension
  • Details

AR series ARO210 standard Quick Coupling

AR20 series, Parker 50 series, ARO210 and Orion 44510 series are interchangeable from one another. The outer profile of the nipples of them are completely same, and they can be compatible with each other. It is usually made of carbon steel with zinc plated or brass acid pickling on the surface. The internal element structured of brass, it is designed with 4 steel balls, and the maximum working pressure is 2.0MPa.



If you replace it with FKM fluorine rubber, it can also work under high temperature conditions. Our regular AR20 series is designed with a 1/4" flow rate body size only. If a larger flow rate is required, it is recommended to choose IN30, IN40 series.


AR series ARO210 standard Quick Coupling

AR series ARO210 standard Quick Coupling

AR series ARO210 standard Quick Coupling
