IK series New Milton American Type Quick Coupling

IK series New Milton American Type Quick Coupling


Features:

 Comply with A-A-59439 (MIL-C-4109F, ISO 6150-B) global interchangeability requirements, compatible with all IN20 series nipples or plugs.

 It is usually made of carbon steel with nickel-plated on the surface or brass with acid pickling, and the internal element is made of brass as well. At present, only 1/4” flow rate body is available.

 This series of quick couplings adopts a structure of 4 steel balls with a maximum working pressure of 2.0MPa. It belongs to medium pressure type in pneumatic quick couplings. It is recommended to use carbon steel nickel-plated nipples or plugs.

 The commonly used sealing material is NBR, in addition, fluorine rubber FKM, EPDM and other sealing materials are available.

 Generally applications include: air compressors, pneumatic tools, lawn mowers, spraying and other industries.



Inquire Now

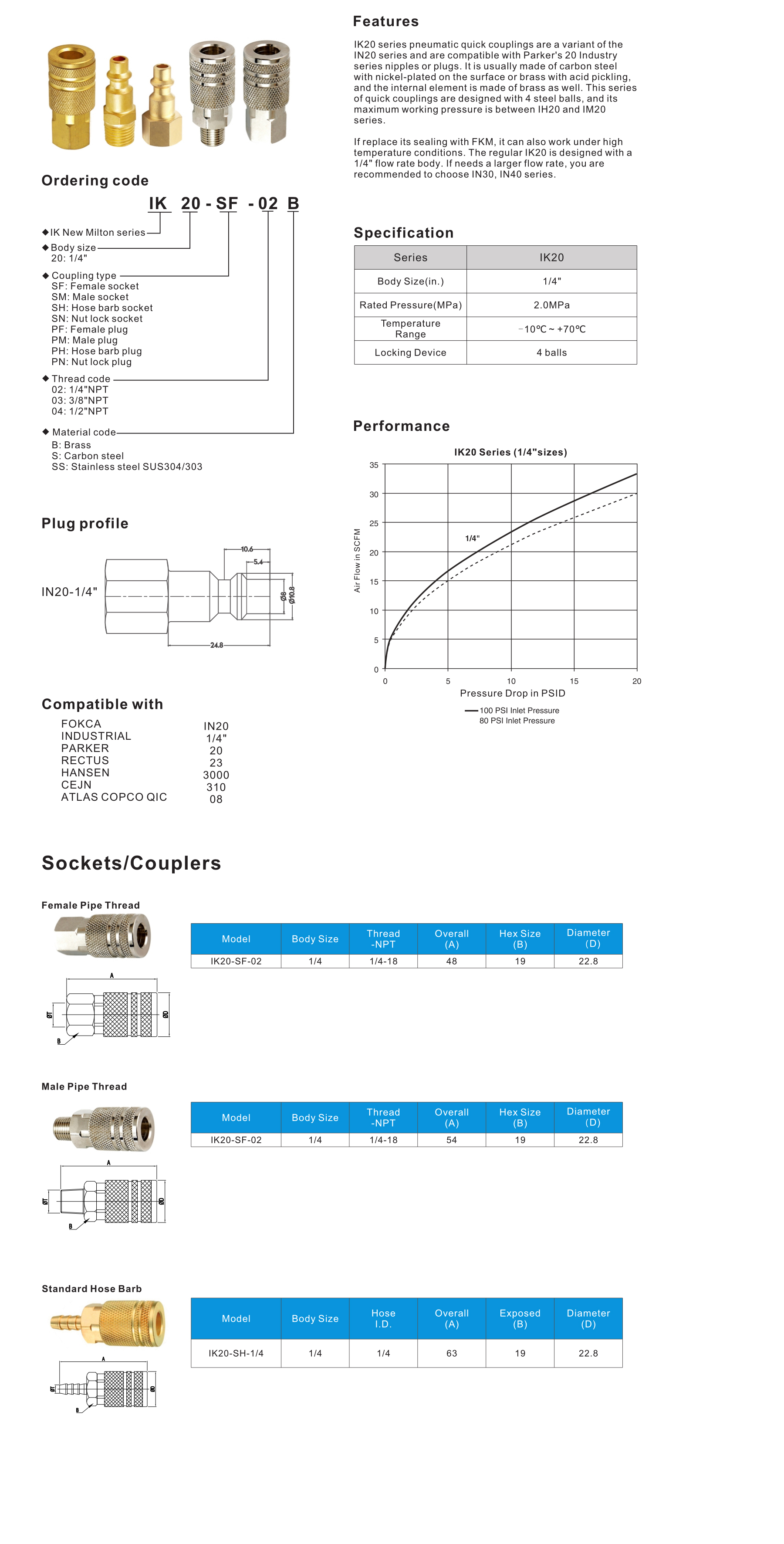

  • Dimension
  • Details

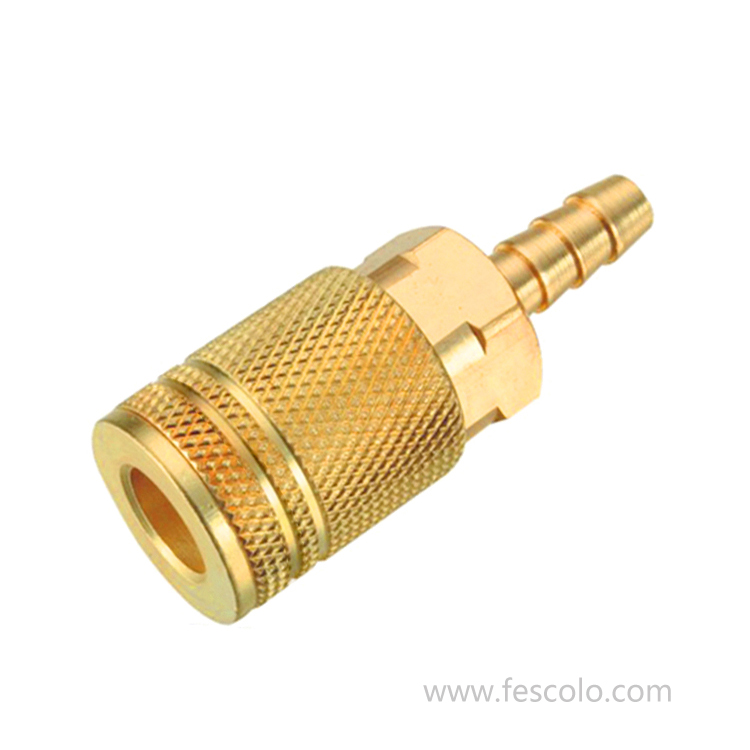

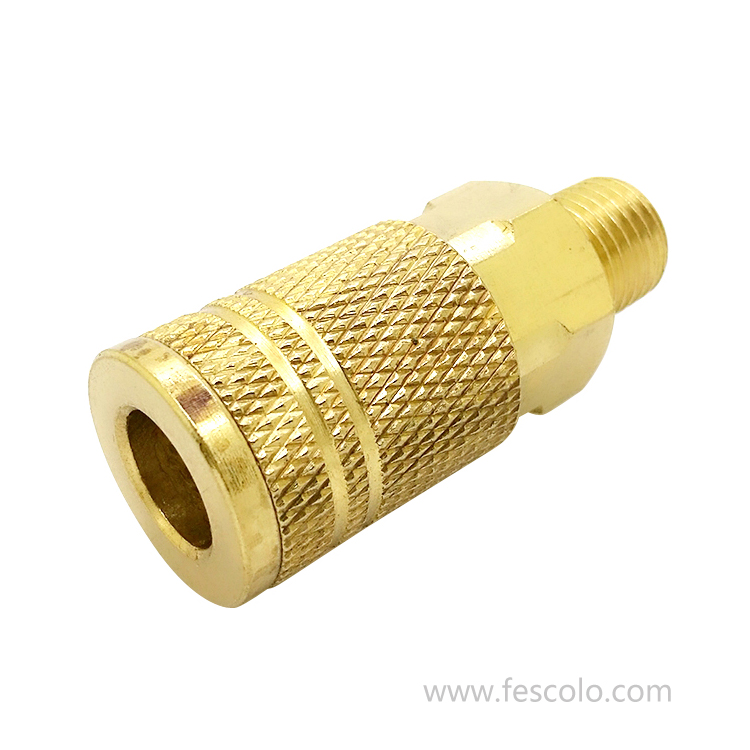

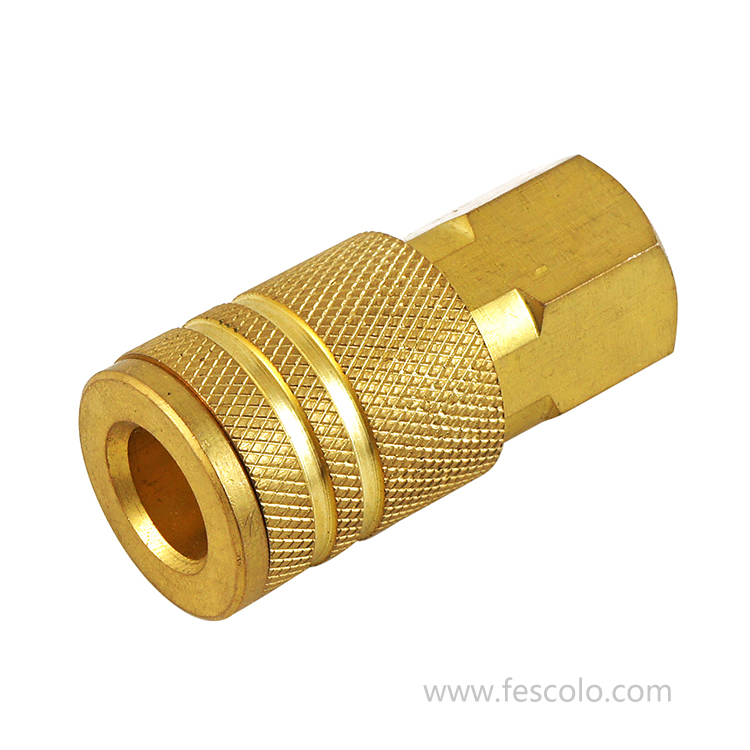

IK series New Milton American Type Quick Coupling

IK20 series pneumatic quick couplings are a variant of the IN20 series and are compatible with Parker's 20 Industry series nipples or plugs. It is usually made of carbon steel with nickel-plated on the surface or brass with acid pickling, and the internal element is made of brass as well. This series of quick couplings are designed with 4 steel balls, and its maximum working pressure is between IH20 and IM20 series.


If replace its sealing with FKM, it can also work under high temperature conditions. The regular IK20 is designed with a 1/4" flow rate body. If needs a larger flow rate, you are recommended to choose IN30, IN40 series.


IK series New Milton American Type Quick Coupling

IK series New Milton American Type Quick Coupling

IK series New Milton American Type Quick Coupling
