IM series Milton American Type Quick Coupling

IM series Milton American Type Quick Coupling


Features:

 Comply with A-A-59439 (MIL-C-4109F, ISO 6150-B) global interchangeability requirements, compatible with all IN20 series nipples or plugs.

 Manual sleeve, single shut off.

 It is usually made of carbon steel with nickel-plated or brass with acid pickling on its surface, and the internal element is made of full brass material. At present, Fokca only provides IM20 series couplings with 1/4” flow rate body size.

 This series of quick couplings adopts 3 steel ball structure, the Max. designed working pressure is 1.0MPa, which belongs to the low pressure type in pneumatic quick couplings. If the working pressure is less than 1.0Mpa, then IM20 series is the first choice.

 The commonly used sealing material is NBR, in addition, fluorine rubber FKM(viton), EPDM and other sealing materials are available.

 Applications include: air compressors, pneumatic tools, lawn mowers, spraying and other industries



Inquire Now
  • Dimension
  • Details

IM series Milton American Type Quick Coupling

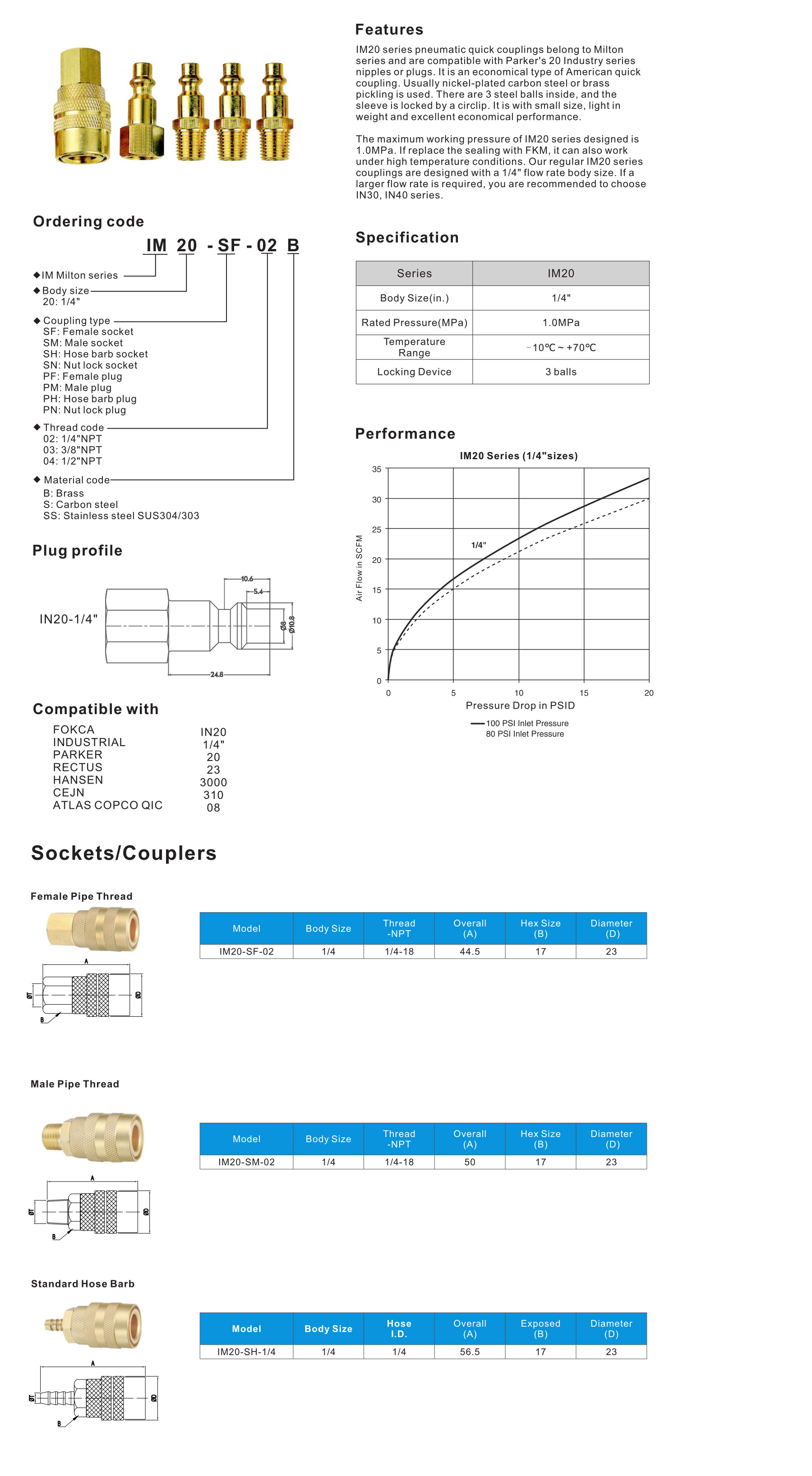

IM SERIES

IM20 series pneumatic quick couplings belong to Milton series and are compatible with Parker's 20 Industry series nipples or plugs. It is an economical type of American quick coupling. Usually nickel-plated carbon steel or brass pickling is used. There are 3 steel balls inside, and the sleeve is locked by a circlip. It is with small size, light in weight and excellent economical performance.



The maximum working pressure of IM20 series designed is 1.0MPa. If replace the sealing with FKM, it can also work under high temperature conditions. Our regular IM20 series couplings are designed with a 1/4" flow rate body size. If a larger flow rate is required, you are recommended to choose IN30, IN40 series.

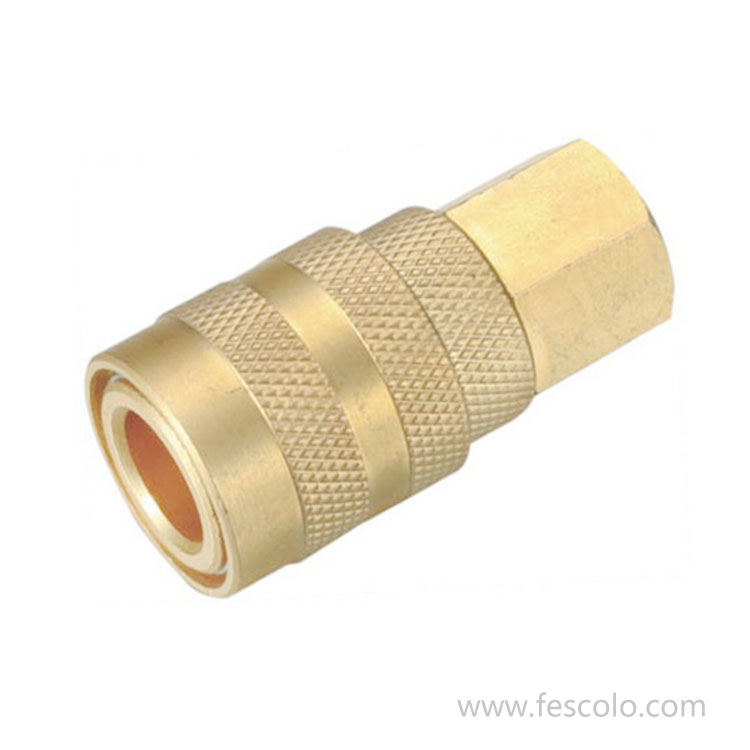

IM series Milton American Type Quick Coupling

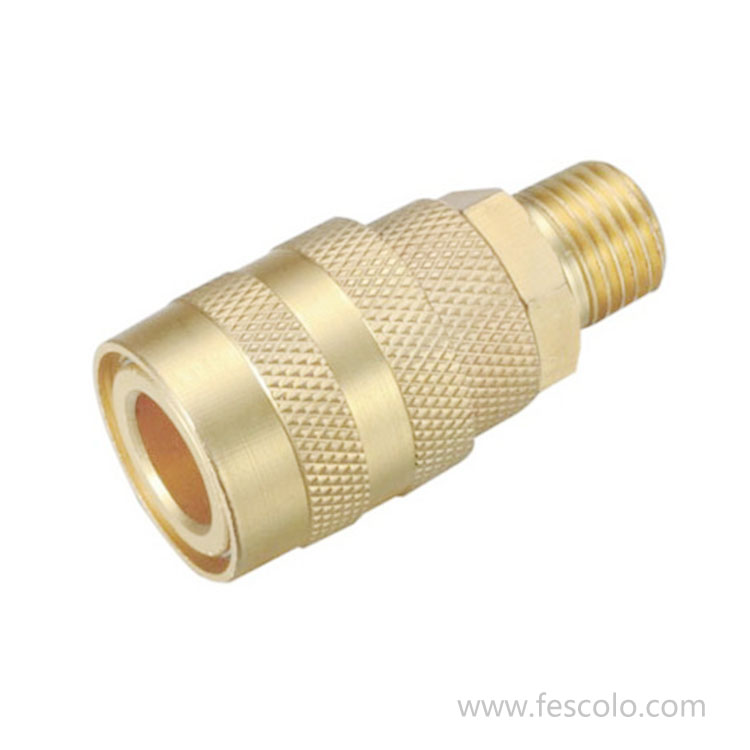

IM series Milton American Type Quick Coupling

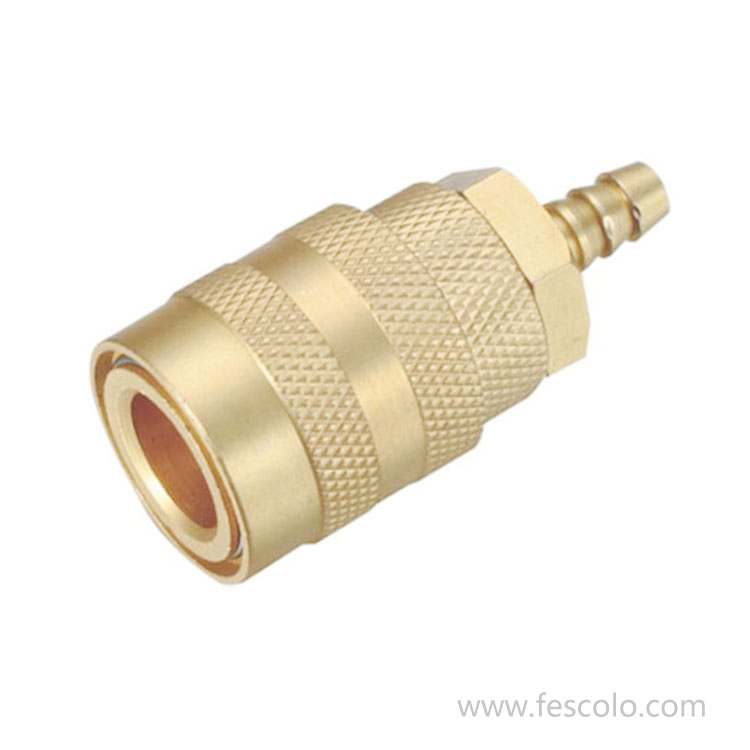

IM series Milton American Type Quick Coupling
