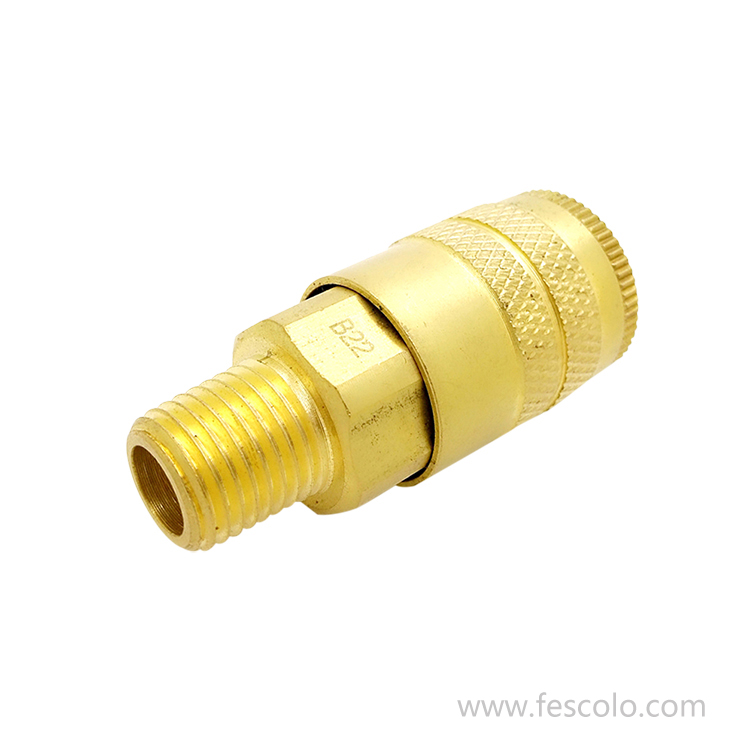

IN series Industrial Type Quick Coupling

IN series Industrial Type Quick Coupling


Features:

 Comply with A-A-59439 (MIL-C-4109F, ISO 6150-B) global interchangeability requirements

 Manual sleeve, single shut off.

 The commonly used material is carbon steel with zinc plated. If it is used in water, oil mist and corrosive environments, you are recommended to choose brass body and element, and stainless steel springs and balls.

 According to its flow rate and orifice, TR series quick couplings can be divided into three types: 1/4”, 3/8”, 1/2”.

 Except for IN20 with 4 steel balls, both IN30 and IN40 use 8 steel balls to bear higher working pressure.

 It is recommended that the working pressure does not exceed 2.0MPa for brass quick couplings. If you need to use a higher working pressure, you can choose carbon steel or stainless steel, or mixed materials. Such as brass body, carbon steel sleeve and nipples or plugs.

 The commonly used sealing material is NBR. Moreover, FKM, EPDM and other sealing materials are available.

 Applications include: air compressor, pneumatic tools, cleaning and spraying industry.



Inquire Now

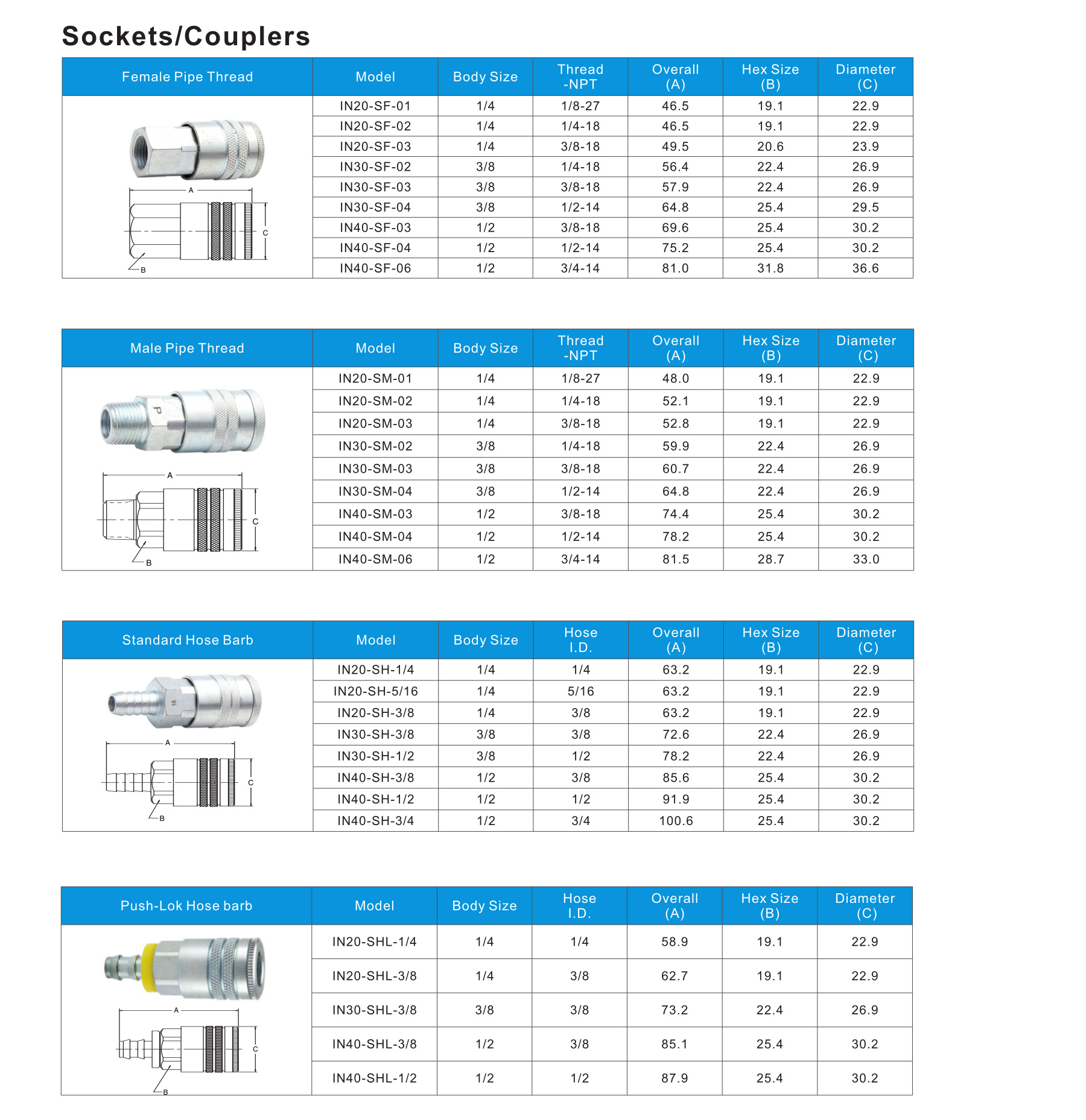

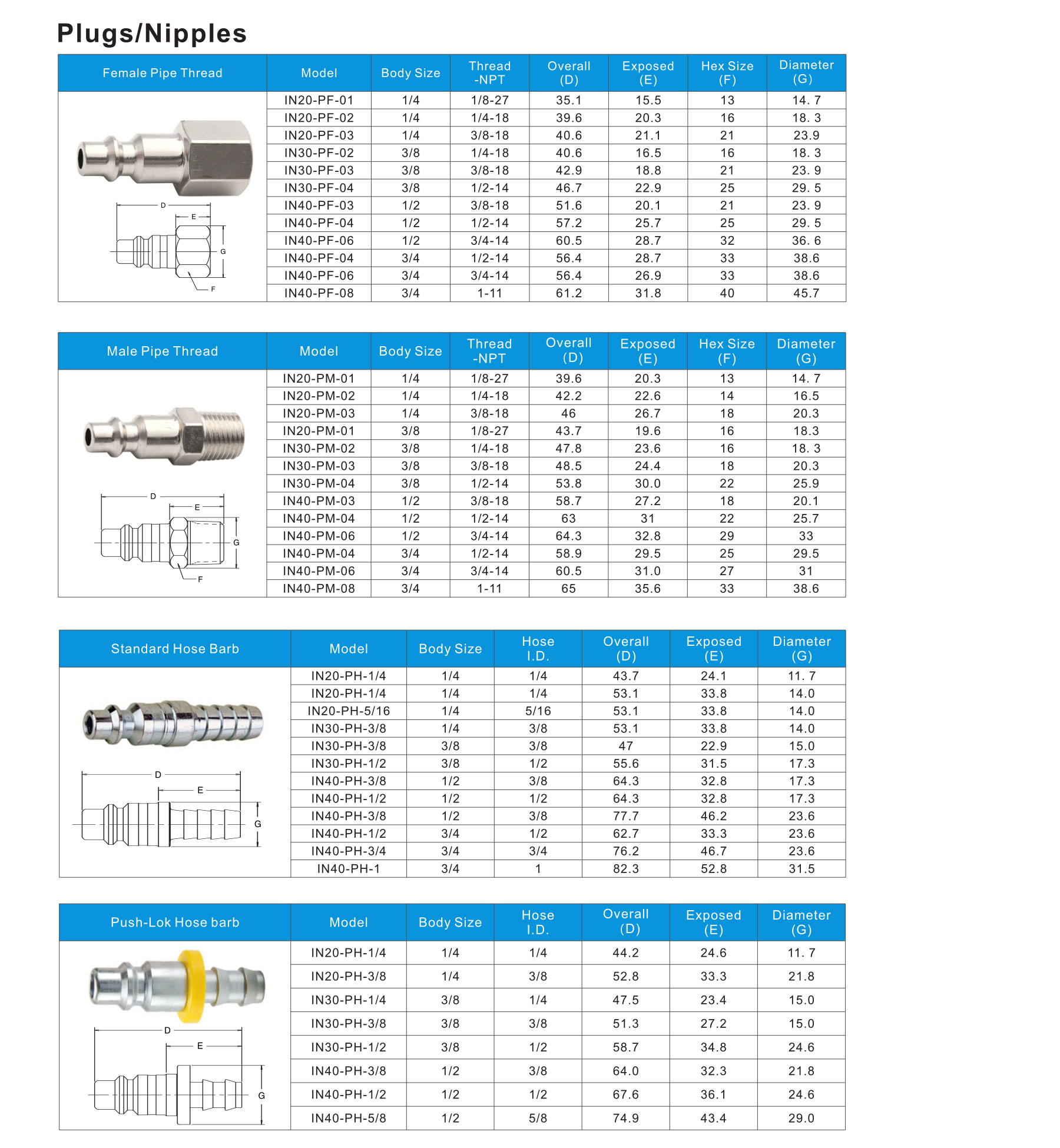

  • Dimension
  • Details

IN series Industrial Type Quick Coupling

IN series Industrial Type Quick Coupling

IN series Industrial Type Quick Coupling

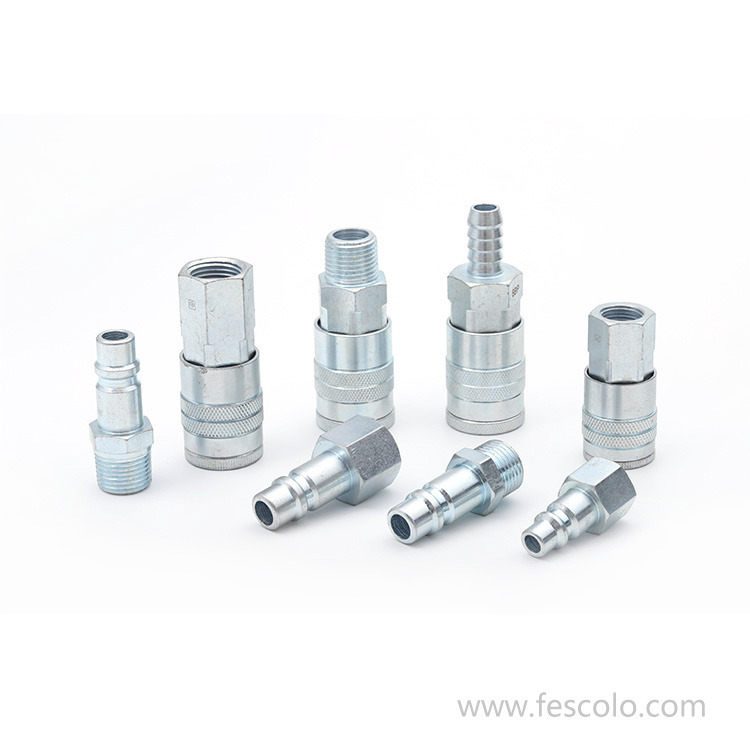

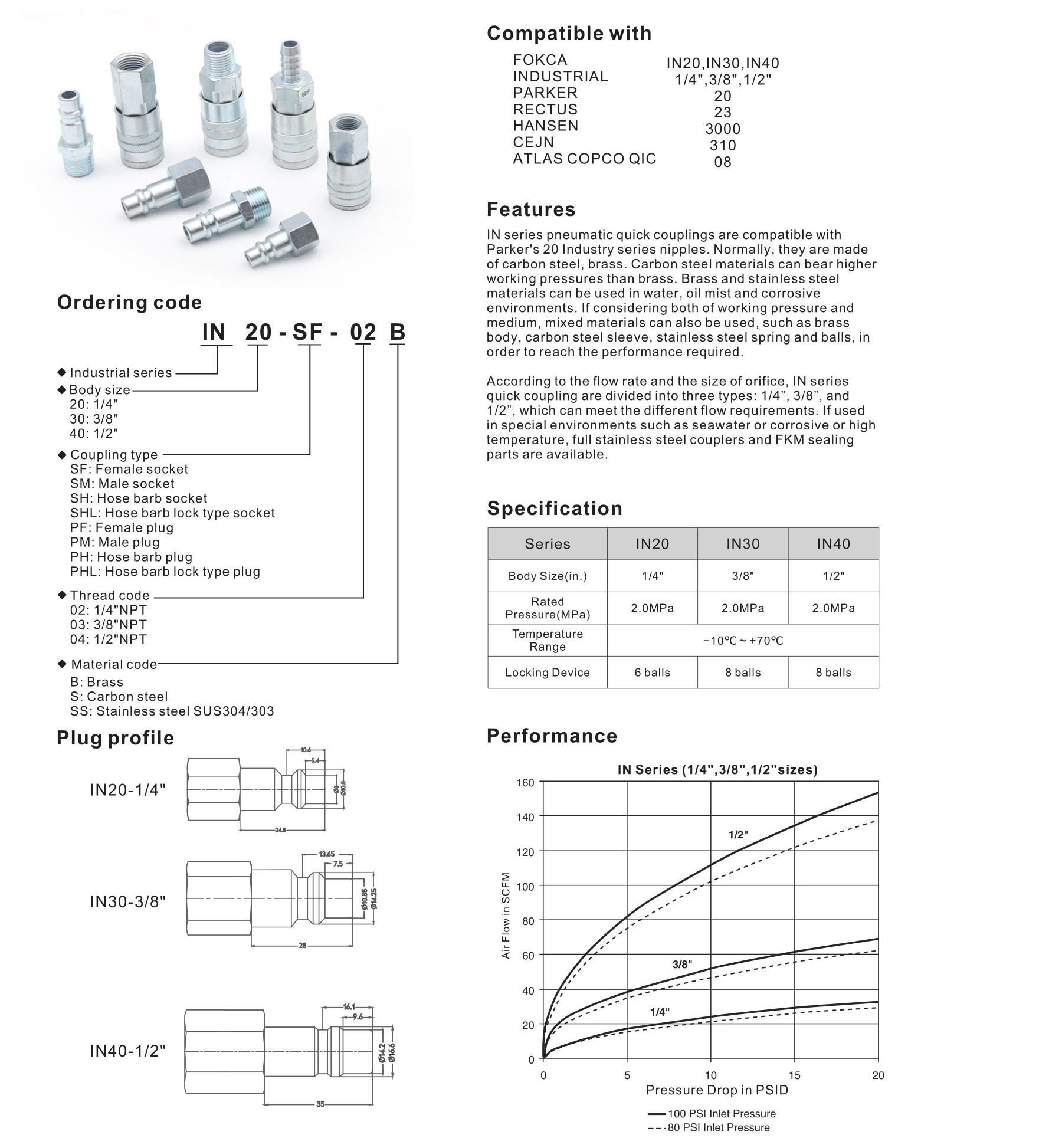

IN series pneumatic quick couplings are compatible with Parker's 20 Industry series nipples. Normally, they are made of carbon steel, brass. Carbon steel materials can bear higher working pressures than brass. Brass and stainless steel materials can be used in water, oil mist and corrosive environments. If considering both of working pressure and medium, mixed materials can also be used, such as brass body, carbon steel sleeve, stainless steel spring and balls, in order to reach the performance required.


According to the flow rate and the size of orifice, IN series quick coupling are divided into three types: 1/4”, 3/8”, and 1/2”, which can meet the different flow requirements. If used in special environments such as seawater or corrosive or high temperature, full stainless steel couplers and FKM sealing parts are available.


IN series Industrial Type Quick Coupling

IN series Industrial Type Quick Coupling

IN series Industrial Type Quick Coupling

IN series Industrial Type Quick Coupling

IN series Industrial Type Quick Coupling

IN series Industrial Type Quick Coupling
