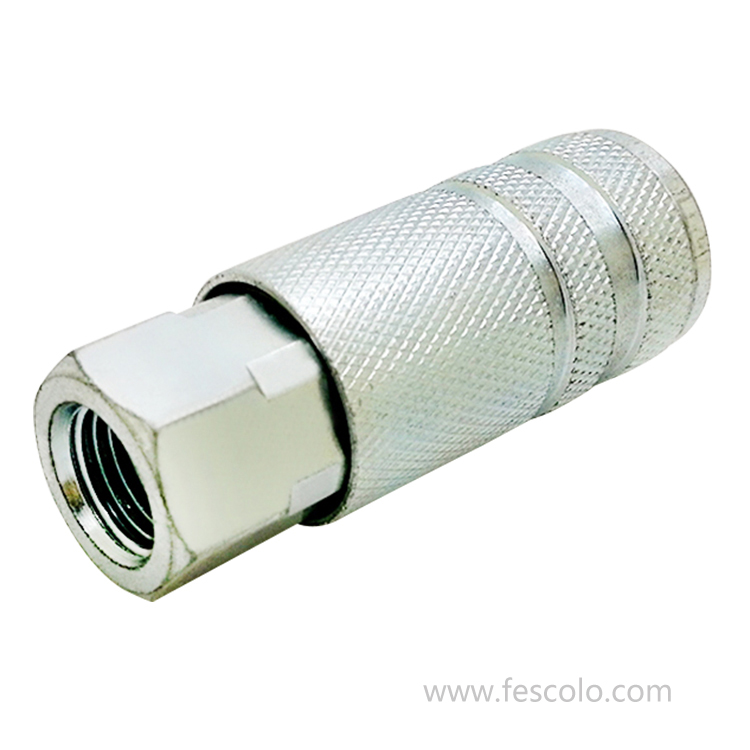

LC series Lincoln Long Steam Type Quick Coupling

LC series Lincoln Long Steam Type Quick Coupling


Features:

 Are interchangeable with Lincoln’s “Long Stem” series couplings, conforms to Parker 70 series..

 Manual sleeve and single shut off.

 Usually made of carbon steel with zinc plated or brass with acid pickling on the surface, and the inner element is made of brass. At present, Fokca provides LC20 series with 1/4 flow rate body size only.

 This series of quick couplings adopts a structure of 4 steel balls with a maximum working pressure of 2.0MPa. They belongs to medium pressure type in pneumatic quick couplings. It is recommended to use carbon steel zinc or nickel plated nipples or plugs.

 The commonly used sealing material is NBR, in addition,FKM fluorine rubber, EPDM and other sealing materials are available.

 Generally applications include: air compressors, pneumatic tools, lawn mowers, spraying and other industries.



Inquire Now

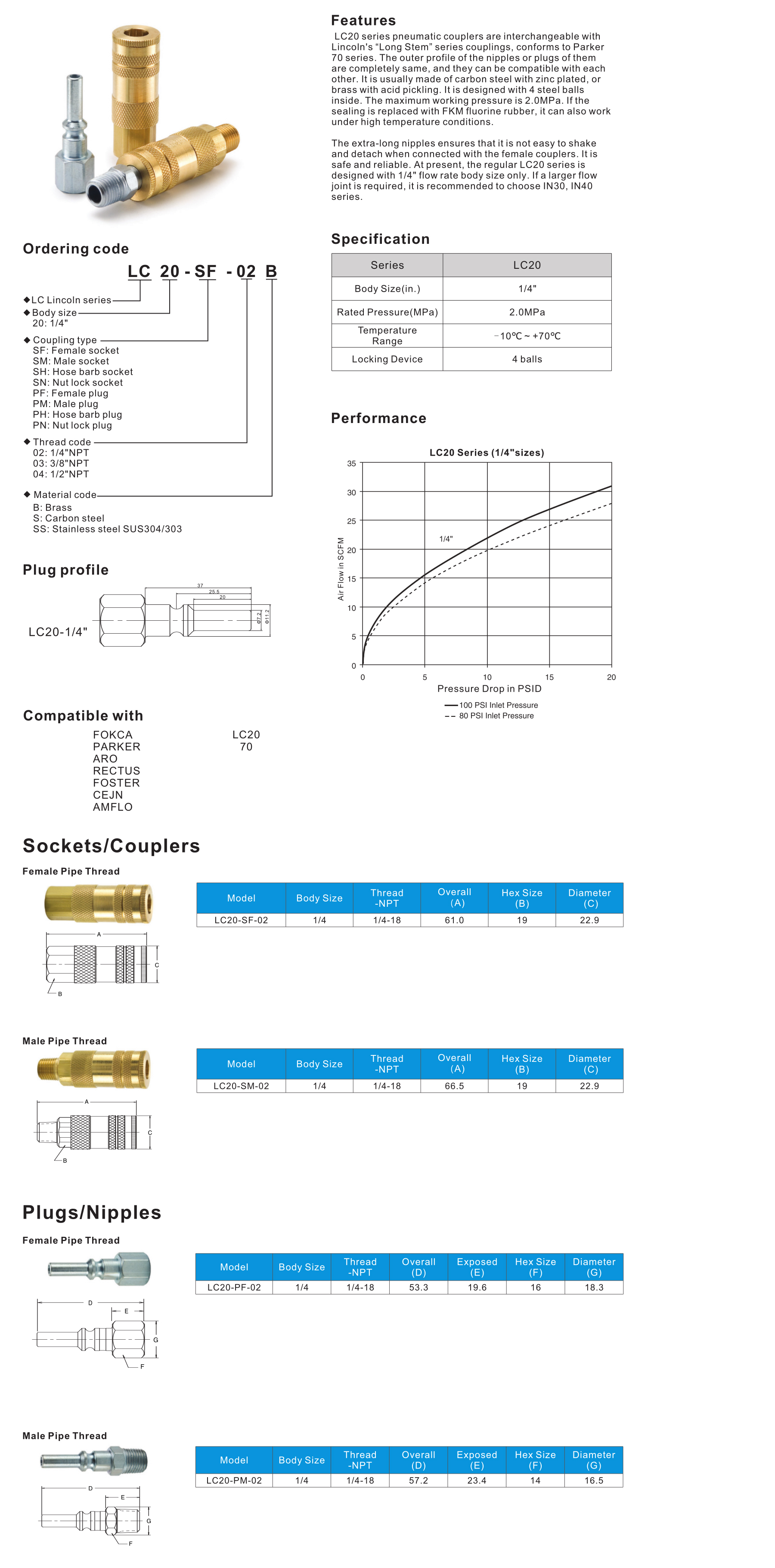

  • Dimension
  • Details

LC series Lincoln Long Steam Type Quick Coupling

LC20 series pneumatic couplers are interchangeable with Lincoln’s “Long Stem” series couplings, conforms to Parker 70 series. The outer profile of the nipples or plugs of them are completely same, and they can be compatible with each other. It is usually made of carbon steel with zinc plated, or brass with acid pickling. It is designed with 4 steel balls inside. The maximum working pressure is 2.0MPa. If the sealing is replaced with FKM fluorine rubber, it can also work under high temperature conditions.

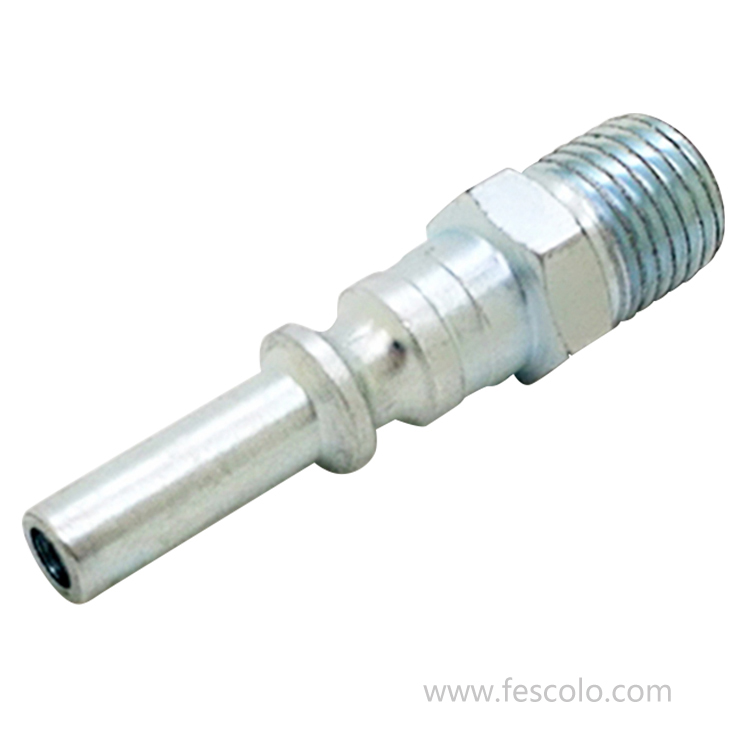

The extra-long nipples ensures that it is not easy to shake and detach when connected with the female couplers. It is safe and reliable. At present, the regular LC20 series is designed with 1/4" flow rate body size only. If a larger flow joint is required, it is recommended to choose IN30, IN40 series.


LC series Lincoln Long Steam Type Quick Coupling

LC series Lincoln Long Steam Type Quick Coupling
