UA series American Type A Universal Quick Coupling

UA series American Type A Universal Quick Coupling


Features:

 It complies with Parker Industrial interchange 1/4”, Tru-Flate, ARO210 standards, and can be compatible with IN20, AR20, and TR20 nipples or plugs.

 Push-to-connect sleeve design for easy one hand operation, single shut off.

 Usually structured of carbon steel with nickel plated or brass with acid pickling on the surface. At present, The UA20 is only available in 1/4" flow rate body.

 This series quick couplings adopts a structure of 4 steel balls with a maximum working pressure of 2.0MPa.It belongs to medium pressure type in pneumatic quick couplings. It is recommended to use carbon steel nickel plated nipples or plugs.

 The commonly used sealing material is NBR, in addition,FKM fluorine rubber, EPDM and other sealing materials are available.

 Generally applications include: air compressors, pneumatic tools, lawn mowers, spraying and other industries.



Inquire Now
  • Dimension
  • Details

UA series American Type A Universal Quick Coupling

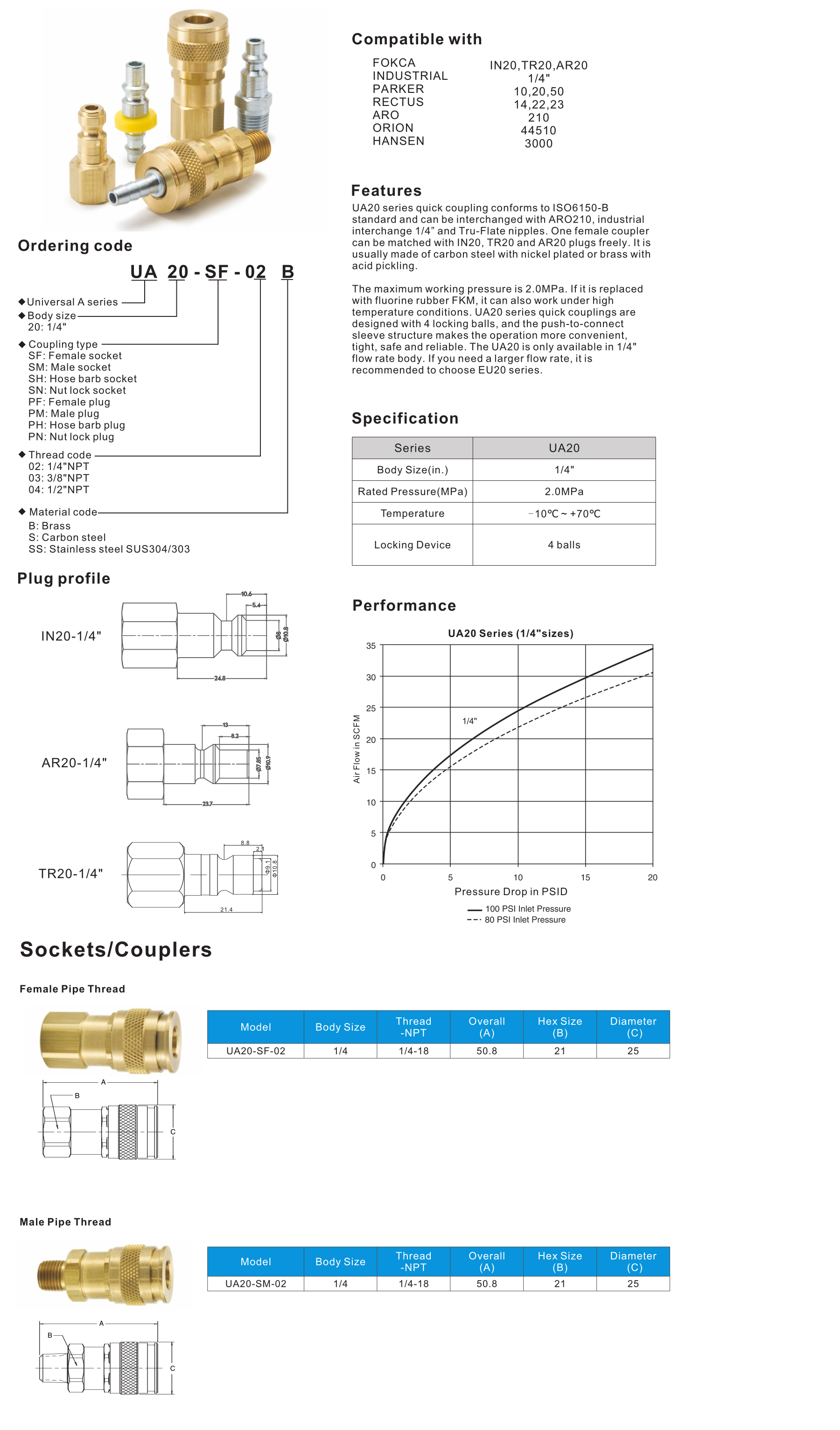

UA20 series quick coupling conforms to ISO6150-B standard and can be interchanged with ARO210, industrial interchange 1/4” and Tru-Flate nipples. One female coupler can be matched with IN20, TR20 and AR20 plugs freely. It is usually made of carbon steel with nickel plated or brass with acid pickling.



The maximum working pressure is 2.0MPa. If it is replaced with fluorine rubber FKM, it can also work under high temperature conditions. UA20 series quick couplings are designed with 4 locking balls, and the push-to-connect sleeve structure makes the operation more convenient, tight, safe and reliable. The UA20 is only available in 1/4" flow rate body. If you need a larger flow rate, it is recommended to choose EU20 series.


UA series American Type A Universal Quick Coupling

UA series American Type A Universal Quick Coupling

UA series American Type A Universal Quick Coupling

UA series American Type A Universal Quick Coupling
