UC series 2 in 1 American Type Quick Coupling

UC series 2 in 1 American Type Quick Coupling


Features:

 It complies with Parker Industrial 1/4”series and ARO210 standard, and is compatible with IN20 and AR20 nipples and plugs.

 Push-to-connect sleeve for easy one hand operation, single shut off.

 UC series quick couplings have characteristics of small size, light weight, easy to operate, safe and reliable. There are a variety of colors to be chosen for its sleeve.

 Normally, the coupling body is made of brass with nickel plated and the sleeve is made of aluminum alloy with surface oxidation treatment. At present, it is available only for 1/4” flow rate body.

 This series of quick couplings adopts a structure of 6 steel balls, and the maximum working pressure is 2.0MPa. They are medium-pressure type in pneumatic quick couplings. It is recommended to use carbon steel nickel-plated nipples or plugs.

 The commonly used sealing material is NBR, in addition, FKM fluorine rubber, EPDM and other sealing materials are available.

 Generally applications include: air compressors, pneumatic tools, lawn mowers, spraying and other industries.



Inquire Now

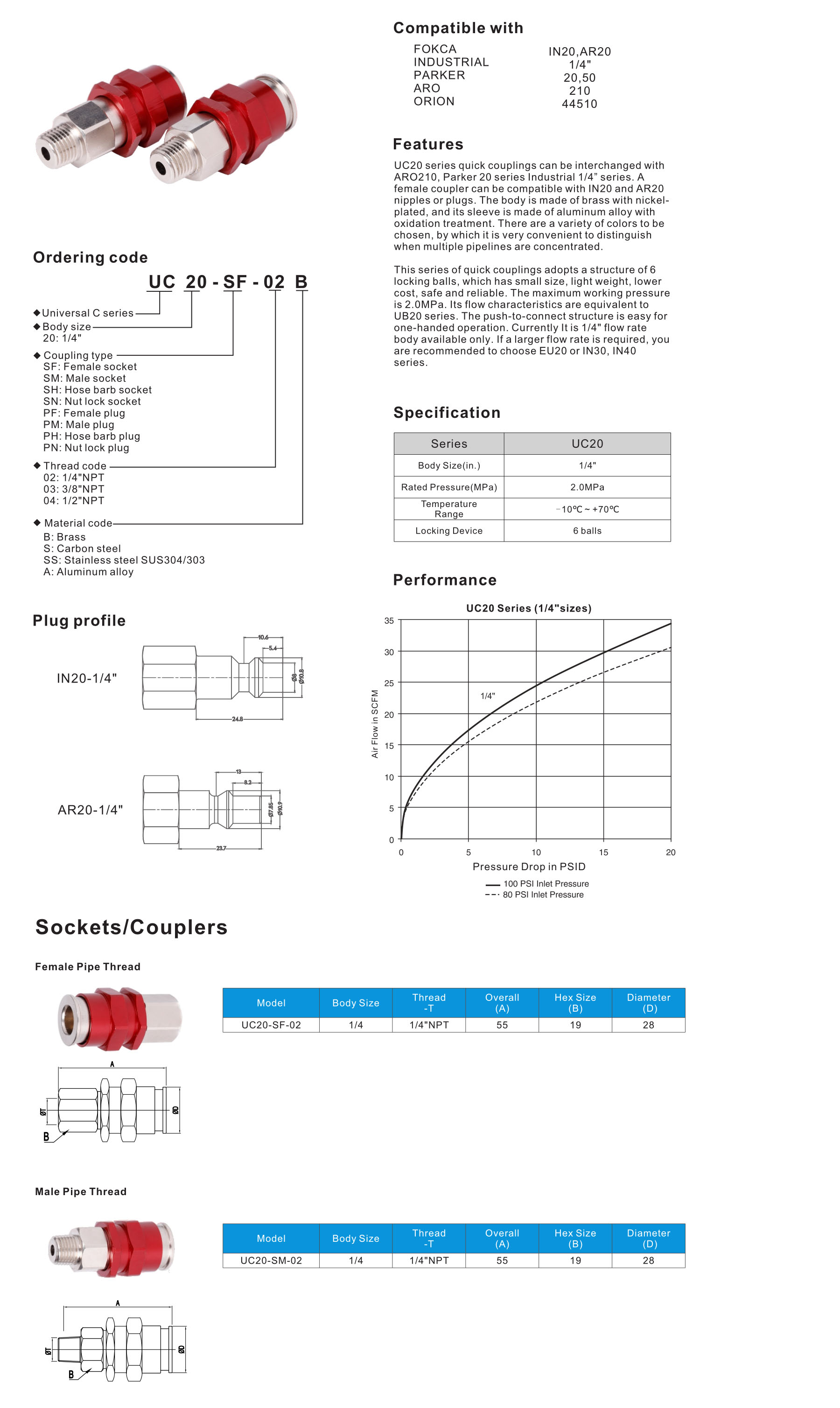

  • Dimension
  • Details

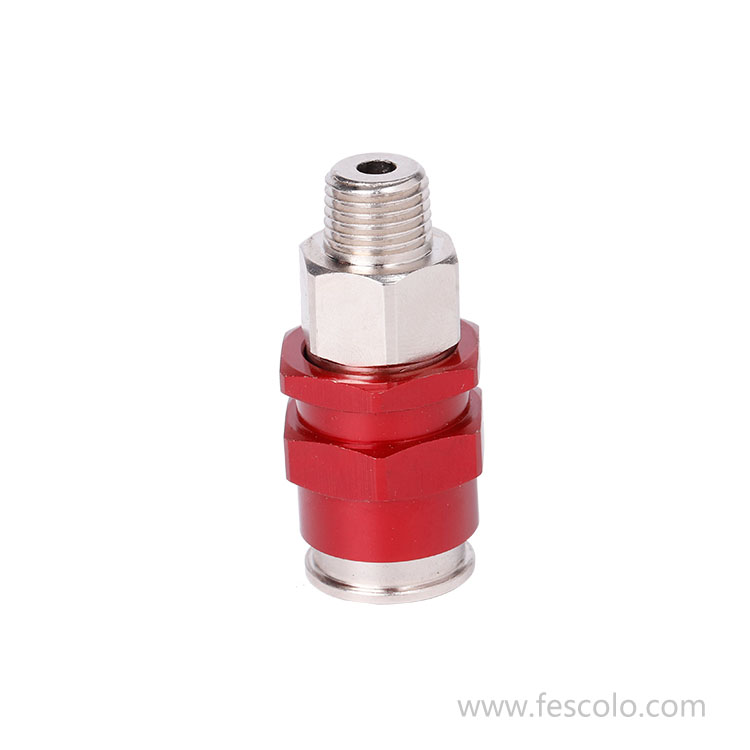

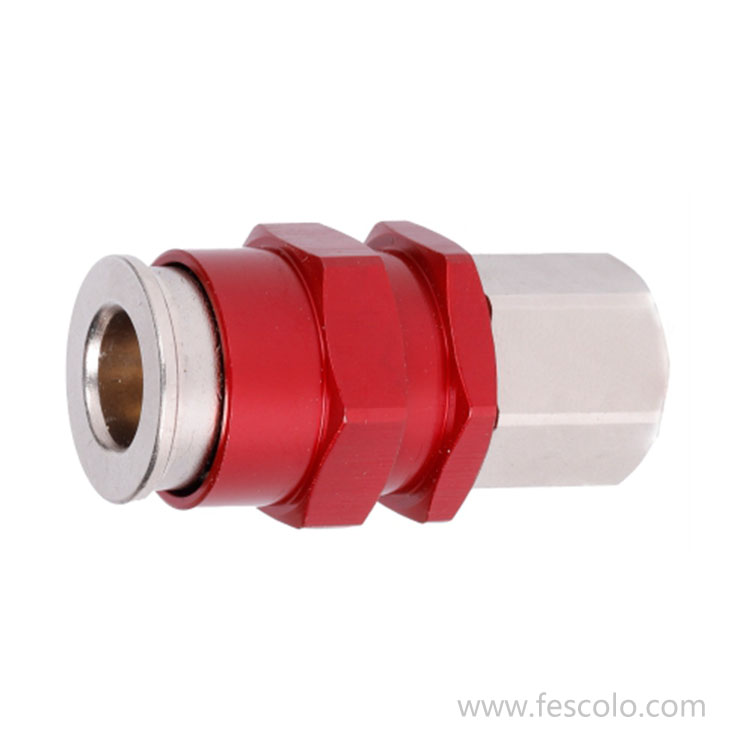

UC series 2 in 1 American Type Quick Coupling

UC20 series quick couplings can be interchanged with ARO210, Parker 20 series Industrial 1/4” series. A female coupler can be compatible with IN20 and AR20 nipples or plugs. The body is made of brass with nickel-plated, and its sleeve is made of aluminum alloy with oxidation treatment. There are a variety of colors to be chosen, by which it is very convenient to distinguish when multiple pipelines are concentrated.



This series of quick couplings adopts a structure of 6 locking balls, which has small size, light weight, lower cost, safe and reliable. The maximum working pressure is 2.0MPa. Its flow characteristics are equivalent to UB20 series. The push-to-connect structure is easy for one-handed operation. Currently It is 1/4" flow rate body available only. If a larger flow rate is required, you are recommended to choose EU20 or IN30, IN40 series.


UC series 2 in 1 American Type Quick Coupling

UC series 2 in 1 American Type Quick Coupling
