Common Challenges with Pneumatic Cylinder Mounting

Pneumatic cylinders are critical components in industrial applications, offering reliable motion and force transfer.

However, improper air cylinder mounting can lead to inefficiencies, premature wear, and equipment failure.

Understanding these challenges and their solutions can significantly improve system performance.

1. Misalignment

One of the most common issues in pneumatic cylinder mounting is misalignment between the cylinder and the load.

Misalignment increases friction on the piston rod, causing wear and reducing efficiency.

Using alignment tools and floating mounts can help maintain proper alignment, preventing unnecessary strain on components.

2. Improper Bracket Selection

Selecting the wrong pneumatic cylinder bracket or mounting accessory can compromise stability.

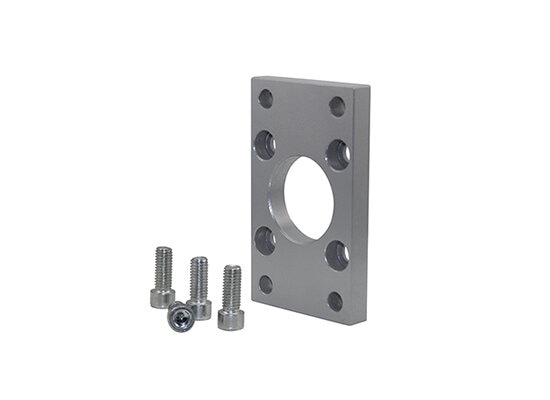

Mounts such as clevis brackets, trunnion mounts, and flange mounts must be chosen based on the application's motion requirements (linear or angular) and type of cylinder.

Always follow manufacturer recommendations for bracket compatibility.

3. Excessive Side Load

Radial loads occur when the load isn’t directly in line with the cylinder’s axis. This can result in piston rod bending, seal failure, or reduced lifespan.

Integrating external guides, such as rails or bushings, can eliminate side loads and protect the cylinder mounting from damage.

4. Environmental Challenges

Harsh environments, such as those with high humidity, dust, or corrosive chemicals, can degrade the cylinder and mounting hardware.

To address these conditions, use protective coatings, stainless steel components, or sealed cylinders designed for specific environments.

5. Inadequate Space Planning

Compact installations often lead to poor decisions in pneumatic cylinder mounting configurations. Tight spaces may result in restricted motion or increased maintenance challenges.

Opt for compact cylinders or mini cylinders to fit space-constrained applications without sacrificing functionality.

6. Improper Installation Practices

Loose bolts, over-tightened screws, or improper torque application can destabilize the mounting system.

Always adhere to the manufacturer’s torque specifications and inspect all fasteners during routine maintenance to ensure stability.

Proper mounting of air cylinders is essential for achieving optimal performance and extending the service life of pneumatic systems.

Careful selection of mounting styles, precise alignment, and the use of appropriate pneumatic cylinder brackets can solve these common challenges.

Regular inspections and adhering to best practices during installation further ensure reliability and efficiency.
