How to choose miniature pneumatic cylinders

Selecting miniature pneumatic cylinders involves careful evaluation of various aspects to ensure optimal performance in your application. Here’s a concise guide summarizing the essential factors to consider:

Size and Stroke Length

Determine the cylinder's bore size (internal diameter) and stroke length (piston travel distance) based on your force and motion requirements.

Force Requirements

To select a mini cylinder, the required bore size should be calculated based on the known output force and operating pressure.

Mode of Cylinder

Single-Acting vs. Double-Acting: Single-acting cylinders use air pressure for motion in one direction with a spring return, while double-acting cylinders use air for both extension and retraction.

Mounting Style

Select a mounting type (e.g., flange, clevis, trunnion, or foot mounting) that suits your application’s stability and spatial constraints.

Working Environment

Account for factors such as temperature, moisture, dust, or chemicals that may impact the cylinder’s performance. Opt for corrosion-resistant materials and seals if necessary.

Material and Construction

Choose suitable materials like aluminum (lightweight and corrosion-resistant), stainless steel (for high corrosion resistance), or brass.

Ensure proper seals and lubrication for optimal performance.

Air Supply Compatibility

Ensure the cylinder matches the air supply’s pressure, flow characteristics, and air quality. Consider filters, lubricators, or dryers if needed.

Special Features

Cushioning: Built-in cushioning helps absorb energy at the end of the stroke for smooth operation.

Magnetic ring：The cylinder with magnetic ring can be used in conjunction with a magnetic switch to precisely control the stroke of the cylinder.

Budget and Cost

Balance performance with cost-effectiveness while ensuring the cylinder meets all technical requirements.

Standards and Regulations

If applicable, select cylinders that comply with specific industry standards (e.g., ISO, DSN).

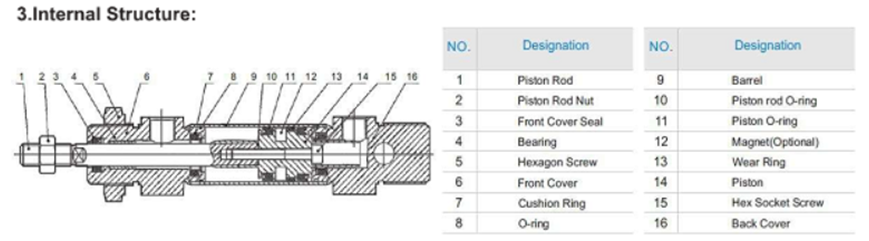

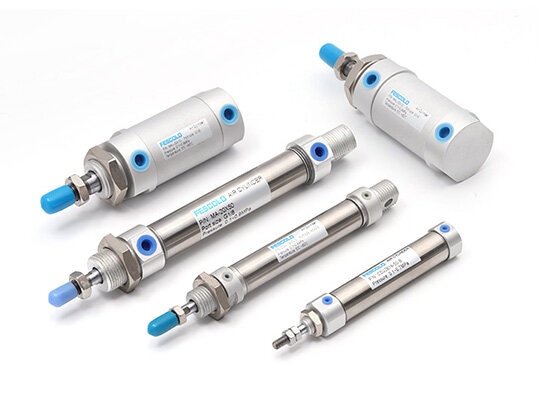

Types of Miniature Pneumatic Cylinders

Here is a concise overview of common types of miniature pneumatic cylinders:

DSN Cylinders:

The DSN series mini cylinders comply with the ISO 6432 standard and offer a variety of mounting options and thread types. Additionally, the piston rods do not require lubrication.

The function of DSN cylinder is similar to MA Cylinders.

MA Cylinders:

The MA series mini cylinders comply with the Airtac standard. The MA mini cylinders are made of stainless steel, providing durability and resistance to corrosion.

MAL Cylinders:

The MAL cylinders are made of aluminum, offering a lightweight and durable option for applications where weight is a concern while still maintaining good resistance to corrosion.

Miniature pneumatic cylinders usage scenarios

Miniature pneumatic cylinders are used across a range of applications due to their compact size and versatility. Here are some typical usage scenarios:

1. Automation Equipment:

Used for precise positioning, gripping, or actuating small parts in automated systems.

2. Medical Devices:

Provides motion control in diagnostic and treatment equipment, such as laboratory automation or patient handling devices.

3. Robotics:

Ideal for lightweight, precise movements in robotic arms and grippers.

4. Packaging Machines:

Performs tasks like sorting, pushing, and compacting in limited spaces.

5. Electronics Manufacturing:

Used for delicate handling and assembly of electronic components.

6. Clamping and Holding:

Offers controlled force for securing parts during machining or assembly processes.

7. Test and Measurement:

Delivers accurate movement for testing, gauging, or calibration systems.

What are the benefits of using stainless steel miniature pneumatic cylinders?

Stainless steel miniature pneumatic cylinders offer benefits such as excellent corrosion resistance, durability, and high strength, making them ideal for harsh environments and demanding applications.

They also provide high temperature resistance, easy maintenance, and hygienic properties, making them suitable for industries like food processing, pharmaceuticals, and medical devices.

Specification & maintenance of Miniature Pneumatic Cylinders

Miniature pneumatic cylinders are specified based on bore size, stroke length, pressure rating, mounting style, material, and seal type,

ensuring they meet the required force, movement range, and environmental conditions. Key considerations also include actuation type (single-acting or double-acting) and cushioning features for smooth operation.

Maintenance involves regular inspections for wear, leaks, and proper movement, along with keeping the cylinder clean and lubricated.

Ensuring a clean, dry air supply, replacing worn seals, and maintaining the correct operating pressure and temperature help prolong cylinder life and performance.
