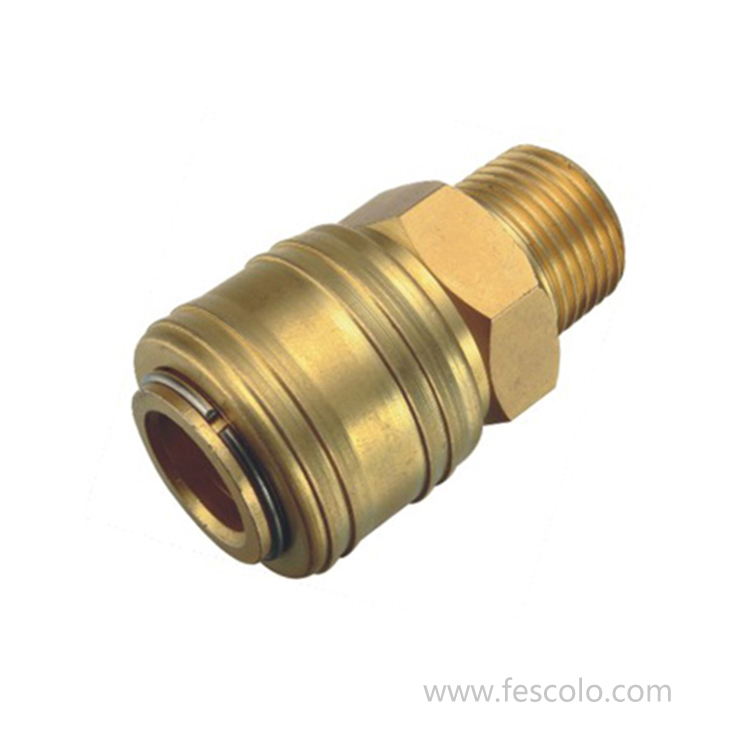

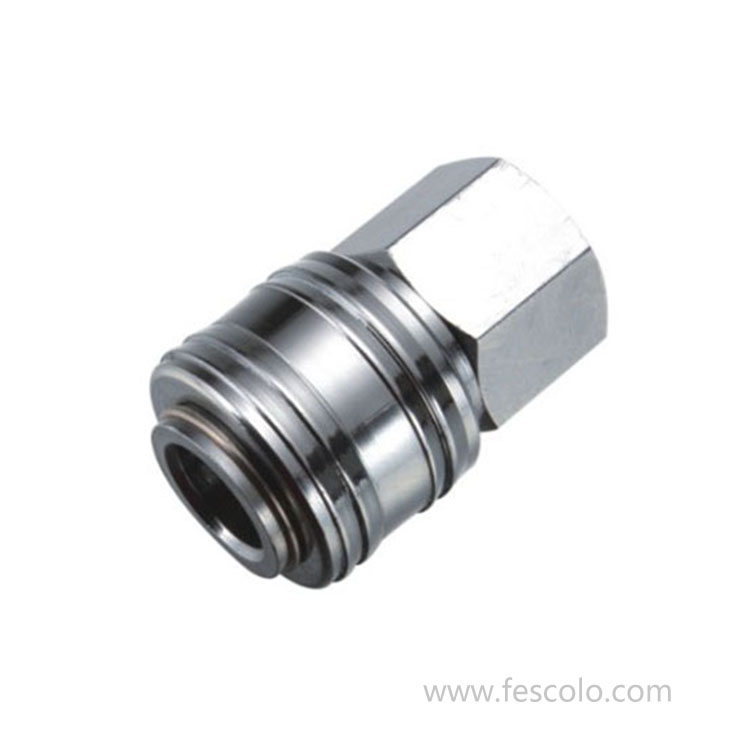

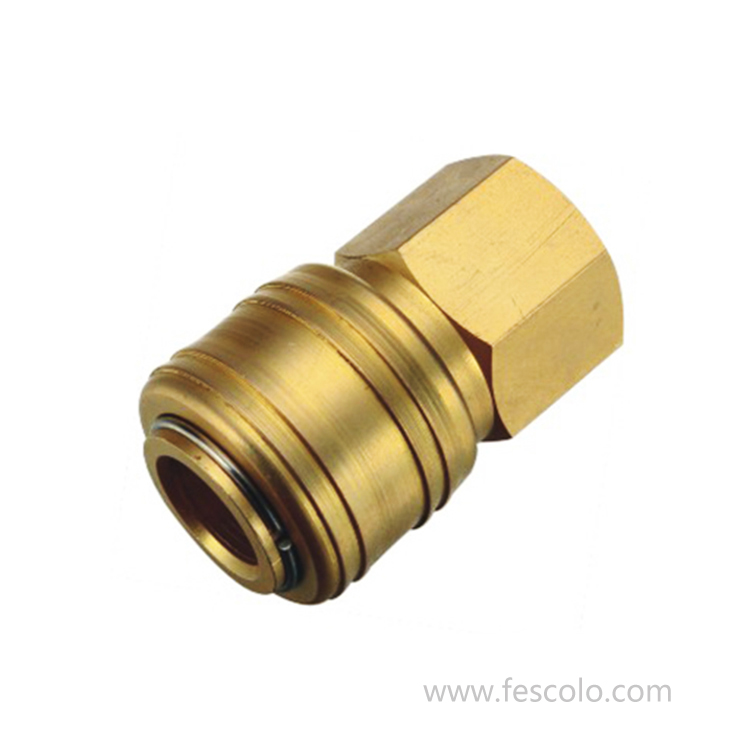

GE20 series German type quick couplings can be interchanged with EU20 series, Parker-Rectus 25, 26, CEJN320 series. Like EU20, the flow rate of GE20 series is much larger than other 1/4” body couplings too, and it is compatible with all EU20 series nipples or plugs. Usually the body and sleeve are made of brass with acid pickling, and designed with two locking bars inside instead of locking balls, There are four types to the couplers: female thread, male thread, hose barb tail and nut-lock type.
This series of coupling is thick, safe and reliable, easy to connect and disconnect, push-to-connect sleeve realizes one-handed operation, and the maximum working pressure is 2.0MPa. For regular GE20 seires, it is available for 1/4" flow rate body only. If a larger flow rate is required, we can also provide GE30 and GE40 series.
