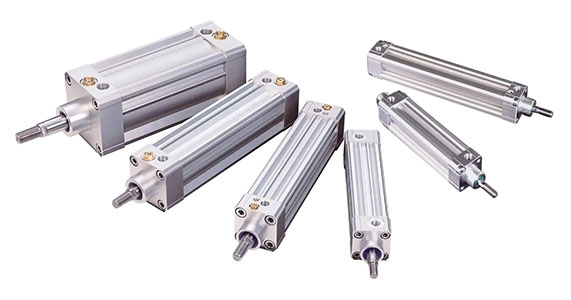

Festo air cylinder

Festo air cylinder is a pneumatic actuator that converts the pressure energy of compressed gas into mechanical energy through pneumatic transmission.

The inner diameter of the FESTO cylinder barrel represents the output force of the cylinder. The piston should slide smoothly back and forth in the cylinder, and the surface roughness of the inner surface of the cylinder should reach Ra0.8um. For the steel tube cylinder, the inner surface should also be plated with hard chrome to reduce frictional resistance and wear and prevent rust. In addition to using high-carbon steel pipes, the cylinder barrels are also made of high-strength aluminum alloys and brass.

There are intake and exhaust ports on the FESTO cylinder end cover, and some also have a buffer mechanism in the end cover. The rod side end cover is provided with a sealing ring and a dust ring to prevent air leakage from the piston rod and prevent external dust from mixing into the cylinder. There is a guide sleeve on the end cover of the rod side to improve the guiding accuracy of the cylinder, bear a small amount of lateral load on the piston rod, reduce the bending amount when the piston rod is extended, and prolong the service life of the cylinder. Guide bushes usually use sintered oil-impregnated alloy, forward-inclined copper castings. In the past, malleable cast iron was commonly used for end caps. Now, in order to reduce weight and prevent rust, aluminum alloy die-casting is often used. Micro cylinders are made of brass.

Festo pneumatic cylinders should be used in printing (tension control), semiconductor (spot welding machine, chip grinding), automation control, robotics, etc. Common festo air cylinders are: SC Series Standard Cylinder, CQ2 Series Compact Cylinder, SDA Series Compact Cylinder.

For more information, please feel free to Contact us.

What Are Festo Air Cylinders?

Festo air cylinders are mechanical devices that use compressed air to generate linear or rotary motion. Built with high-quality materials and precision engineering, they are essential for tasks like pushing, pulling, lifting, or holding objects in automated systems. Available in various configurations, Festo cylinders cater to diverse industrial needs.

Types of Festo Air Cylinders

1. Standard Air Cylinders
   Designed for general-purpose applications, standard air cylinders are available in single-acting and double-acting versions. They ensure robust performance and durability in various industrial settings.

2. Compact Air Cylinders
   Perfect for space-limited applications, compact cylinders deliver high performance despite their small size. These are ideal for modern machinery with restricted installation space.

3. Guided Cylinders
   These cylinders feature integrated guidance systems for precise positioning. They are suitable for tasks requiring stability and alignment, ensuring smooth and accurate operations.

4. Rodless Cylinders
   Rodless air cylinders eliminate the need for an external piston rod, offering a more space-efficient design. These are ideal for long-stroke applications like conveyor systems.

5. Cleanroom Cylinders
   Specifically designed for contamination-sensitive environments, cleanroom cylinders meet strict hygiene standards, making them suitable for industries like pharmaceuticals and food processing.

6. Multi-Stage Cylinders
   These cylinders deliver higher forces over extended strokes, ideal for handling heavy loads in industries like automotive and manufacturing.

7. Special Purpose Cylinders
   Customized air cylinders tailored for specific applications, such as integrated sensors or enhanced cushioning, ensure optimal performance in unique scenarios.

Benefits of Festo Air Cylinders

• High Reliability: Durable construction ensures consistent performance even in demanding environments.

• Precision Engineering: Ideal for applications requiring accurate motion and positioning.

• Energy Efficiency: Designed to optimize air consumption, reducing operational costs.

• Versatile Customization: Available in various sizes, strokes, and configurations to meet specific application needs.

• Easy Integration: Seamlessly integrates with Festo's valves, actuators, and sensors for efficient automation systems.

Applications of Festo Air Cylinders

1. Industrial Automation: Used in assembly lines, robotics, and pick-and-place systems.

2. Material Handling: Ensures precise positioning and movement of items on conveyor systems.

3. Packaging Industry: Facilitates efficient operations in packaging lines for sorting and sealing.

4. Manufacturing Processes: Performs critical tasks like pressing, welding, and punching.

5. Cleanroom Operations: Maintains hygiene in industries like pharmaceuticals and electronics
