There are many control valve types used across various industries and applications. As for flow control valves, pneumatic valve types range from simple to complex; some valves are highly sophisticated and can automatically adjust based on changes in pressure and temperature. Anyway flow regulating valve is designed to control the amount of fluid that passes through a pipeline or conduit, ensuring that the flow rate is maintained. Flow control valves are widely used in hydraulic, pneumatic, water, and gas systems.
The function of a flow control valve is to regulate and control the flow rate of fluid or gas in a piping system. By restricting or adjusting the flow of the fluid, it ensures that motors or pneumatic systems operate at the required speed, thus meeting specific operational requirements. By precisely controlling the flow rate, flow control valves determine the energy transfer rate at any given point, allowing the system to operate at its optimal performance, improving energy efficiency and reducing waste.
In addition, benefits such as preventing overload, improving system efficiency, providing precise control, automation and remote adjustment, and protecting equipment, among others, are offered by flow control valves, such as flow control valves for water.Common examples include showers, faucets, and lawn irrigation systems, where precise control can easily reduce water usage, conserve water, and not affect the overall system performance. Additionally, due to their design, they are less likely to clog and have a longer service life.
Working Principle of a Flow Control Valve:
The valve creates resistance to the flow of fluid or gas by adjusting the size of the opening (also known as the orifice) through which the fluid passes. This adjustment can be made manually, electrically, or pneumatically. As the opening narrows, the flow decreases; as the opening widens, the flow increases.
A flow control valve can either be set to a fixed flow rate or provide an adjustable setting, allowing users to change the flow based on system requirements. The control mechanism may include a knob, actuator, or electronic controller.
Some flow control valves (e.g., pressure compensated flow regulating valves) automatically adjust based on changes in system pressure. When the system pressure fluctuates, the valve compensates by adjusting the opening, ensuring a constant flow. This is critical for applications where maintaining stable flow despite pressure changes is essential.
Manual Control: The operator manually adjusts the valve to achieve the desired flow rate.
Automatic Control: The valve uses sensors and controllers to adjust the flow based on real-time feedback from the system.
Depending on design and functionality, there are several types of flow control valves:
Needle Valve: Provides fine, precise flow control.
Orifice Flow Control Valve: Restricts the flow through a fixed opening.
Pressure Compensated Flow Control Valve: Automatically adjusts to maintain a constant flow despite pressure fluctuations.
Bi-Directional Flow Control Valve: Controls the flow in two directions within the system.
Some flow control valves, such as Flowserve valves, are equipped with sensors or gauges to monitor the flow and provide real-time feedback to the control system.
This ensures that the system maintains optimal performance and efficiency.
Flow control valves are used in various industries, including:
Pneumatic and Hydraulic Systems: To control the speed of actuators and motors.
Water Treatment: To regulate the flow of water or chemicals.
HVAC Systems: To control airflow and temperature.
Fuel and Chemical Systems: To regulate the flow of fuel or chemicals in industrial processes.

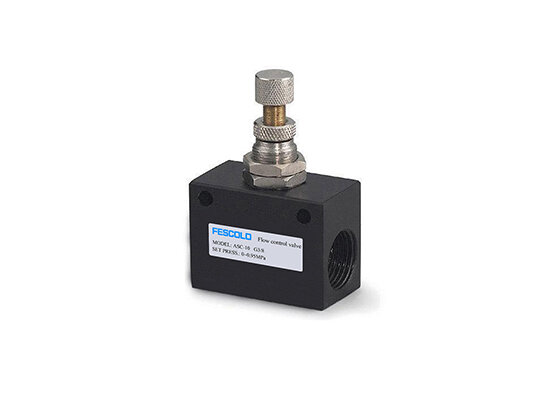

ASC Series Flow Control Valve:
◆ The ASC series flow control valve is a type of valve which regulates the flow or pressure of a fluid.
◆ They normally respond to signals generated by independent devices such as flow meters or temperature gauges.
◆ Different thread types can be offered according to customers' requirements, e.g.: PT, NPT etc.
The most significant feature of this valve is that it can control the rate of air intake into the air inlet, thereby controlling the speed at which the piston exits, but it does not affect the exhaust rate of the exhaust port. The piston can retract at normal speed

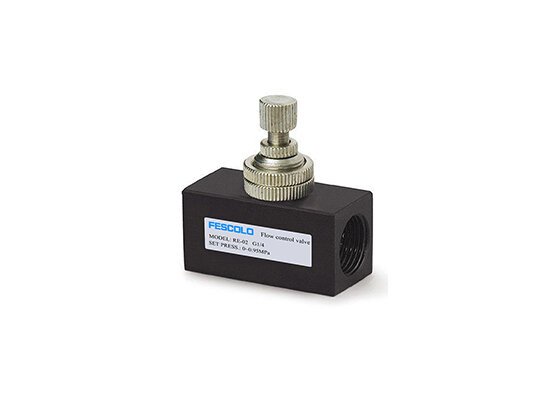

RE Series Flow Control Valve:
◆ The RE series flow control valve is a type of valve which regulates the flow or pressure of a fluid.
◆ They normally respond to signals generated by independent devices such as flow meters or temperature gauges.
◆ Different thread types can be offered according to customers' requirements, e.g.: PT, NPT etc.
The most significant feature of this valve is that it can control the rate of air intake from the exhaust port, thereby controlling the speed of piston retraction, but it does not affect the intake rate of the intake port. The normal speed of the piston is exported

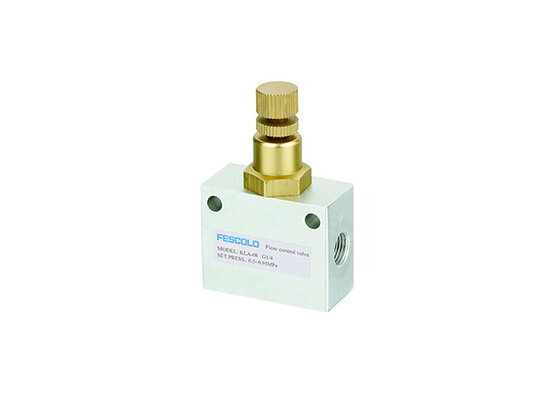

KLA Series Flow Control Check Valve:
◆ The KLA series flow control valve is a type of check valve which regulates the flow or pressure of a fluid.
◆ They normally respond to signals generated by independent devices such as flow meters or temperature gauges.
◆ Different thread types can be offered according to customers' requirements, e.g.: PT, NPT etc.
The most significant feature of this valve is that it can control the rate of air intake and exhaust, thereby affecting the extraction and retraction rate of the piston
