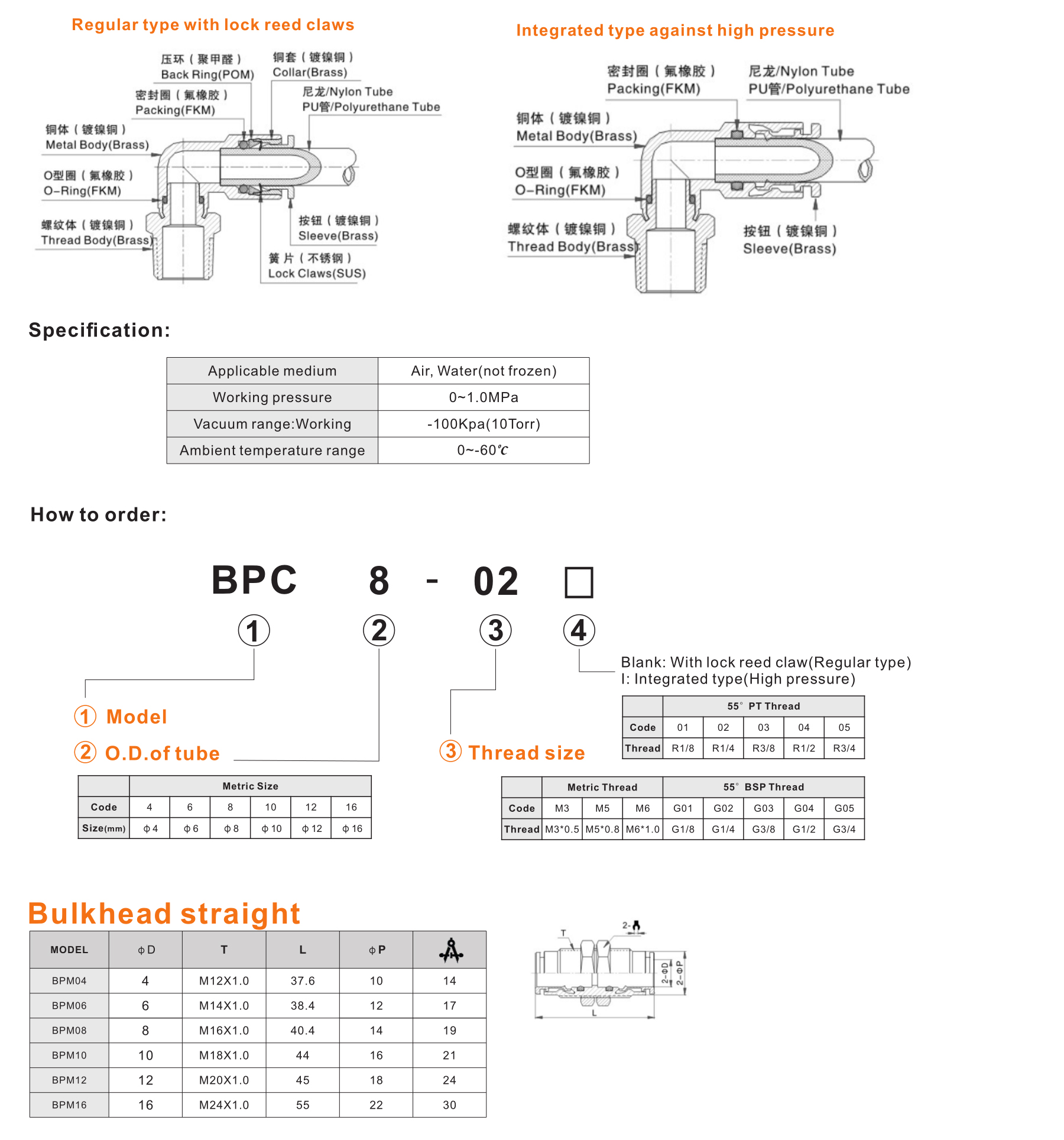

Feature:
Materials of body: Brass / Nickel-Plated.
Working Temperature: -20℃~+80℃
◆ Applicable medium :Compressed air, gas,vacuum.
◆ Thread type: NPT, BSPT(PT or R), BSP, Metric.
◆ Recommended tubings: PA11,PA12,PA6, Polyethylene PE,Polyurethane PU(98 Shore A).
◆ Acceptable Tolerance of tubing: ±0.1mm.
◆ Working Pressure range: 0~20Bar.
BSC Male speed control valve
BPU Straight union
BPY Y branch union
KJ series mini type push-in fittings
ASN2 series throttle valve(with air muffler)
BX series vacuum generator
FPB-S Ferrule-type Compression Male Tee Branch
RPL-S Series Rapid Screw Rotatable 90° Elbow
RPU-S Series Rapid Screw Straight
