Hydraulic hose quick connect

Hydraulic quick connectors are designed for special heavy loads. The material of the female connector is chrome-plated steel. The lock sleeves of the male connector and the female connector are hardened, with good pressure resistance and fatigue resistance. lock function.

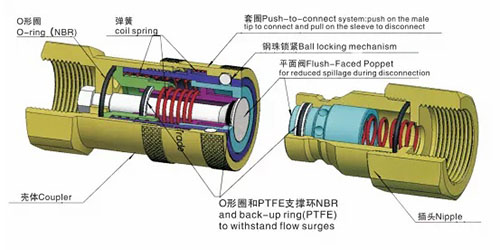

The hydraulic quick connector head with opening and closing at both ends is composed of a connector body, a check valve core, a jacket, a steel ball, a spring and a seal. There is a one-way valve in the inner cavity of the joint body. When the two joint bodies are separated, the valve core of the one-way valve stretches out under the action of their respective springs and presses on the conical hole of the joint body to close the passage. , the oil in the pipes on both sides is enclosed in the pipes and cannot flow out; when the two joint bodies are connected, the two top rods at the front end of the one-way valve spool collide, forcing the spool to leave the conical hole of the joint body, so that the pipes on both sides of the pipe The oil is connected, and the two joint bodies are locked with steel balls. When working, the outer sleeve presses the steel balls in the U-shaped groove of the joint body under the action of the spring to connect the joint bodies. Common hydraulic line quick connects are: FK-A2 Series close type hydraulic quick coupling, FK-A3 Series close type hydraulic quick coupling.

Hydraulic quick couplings are often used in air piping, pneumatic tool accessories, ion cooling device piping, winemaking equipment, cutting oil piping for working machines, car washing machines, hydraulic equipment, construction machinery and other places. Common hydraulic quick connector models are: 3 8 hydraulic hose quick coupler, 1 2 hydraulic quick connect fittings, 1 4 hydraulic quick connect.

Features of Hydraulic Hose Quick Connect Couplings

◆ Leak-Proof Sealing
Advanced sealing technology ensures a tight, leak-free connection, preventing fluid loss and contamination.

◆ Durability
Made from high-quality materials such as stainless steel, brass, or carbon steel with specialized coatings for corrosion resistance.

◆ Easy Operation
Push-to-connect and pull-to-disconnect designs allow for quick and effortless coupling and uncoupling without tools.

◆ High-Pressure Resistance
Designed to withstand extreme pressures in hydraulic systems, ensuring safe and efficient operation.

◆ Interchangeability
Many hydraulic quick connectors comply with international standards, making them compatible with various equipment brands.

◆ Safety Mechanisms
Some couplings feature locking mechanisms to prevent accidental disconnection under pressure.

Applications of Hydraulic Hose Quick Connects

◆ Construction Machinery: Used in excavators, bulldozers, and cranes for fast tool and attachment changes.

◆ Agriculture Equipment: Facilitates quick connections for hydraulic systems in tractors, harvesters, and sprayers.

◆ Industrial Manufacturing: Applied in hydraulic presses, automation systems, and heavy-duty machinery for seamless operations.

◆ Oil and Gas Industry: Enables quick maintenance and replacement of hydraulic lines in drilling and extraction equipment.

◆ Automotive and Transportation: Used in hydraulic braking and power steering systems for reliable performance.

Benefits of Using Hydraulic Hose Quick Connects

◆ Reduces Downtime: Quick coupling minimizes equipment idle time, increasing productivity.

◆ Enhances Safety: Leak-proof designs and safety locks prevent accidents and environmental hazards.

◆ Improves Maintenance Efficiency: Allows easy replacement and servicing of hydraulic components without system depressurization.

◆ Increases System Versatility: Enables multi-functional use of hydraulic equipment with interchangeable attachments.

Choosing the Right Hydraulic Hose Quick Connect

Selecting the right quick connect coupling depends on factors such as pressure rating, material compatibility, flow capacity, and environmental conditions.

It is essential to choose couplings that meet industry standards and specific application requirements.
