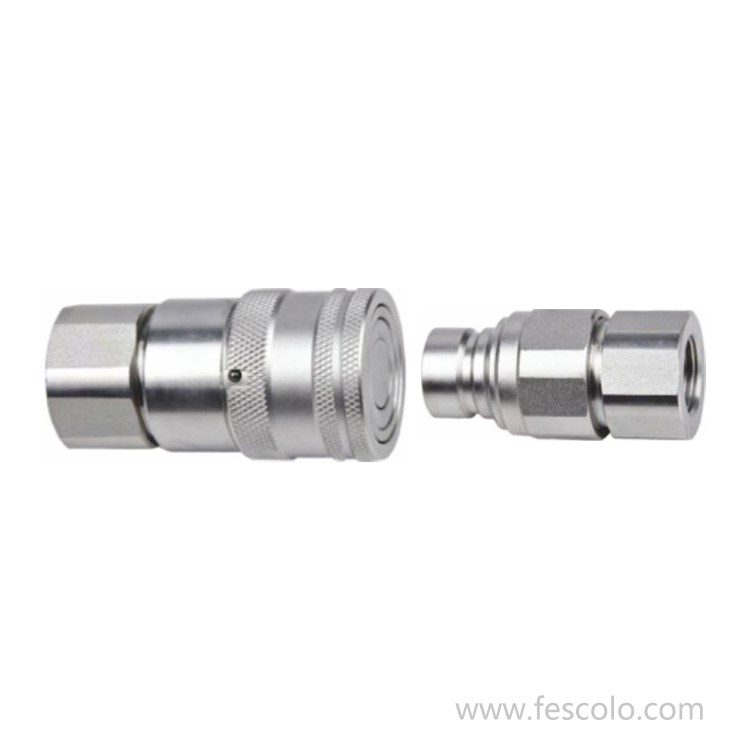

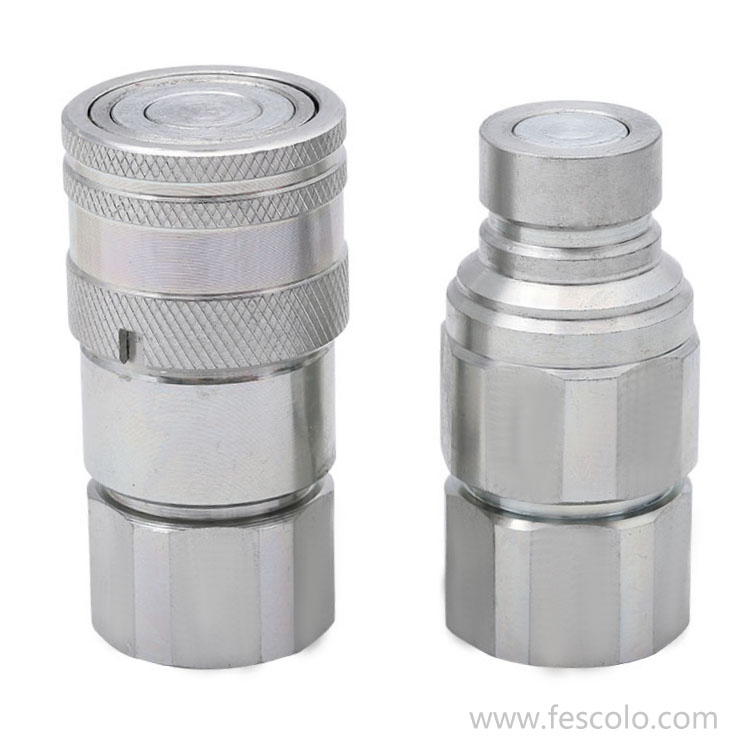

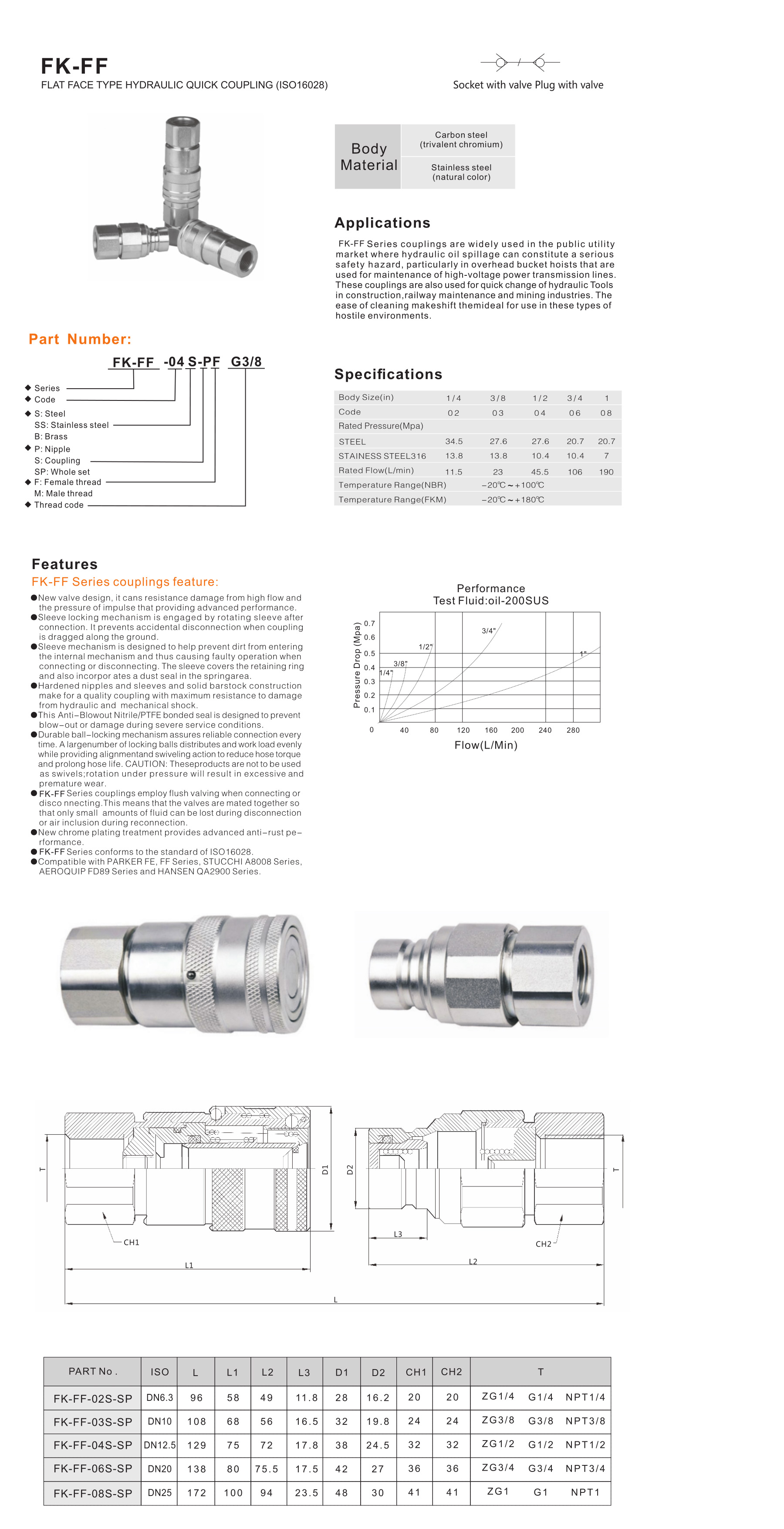

FK-FF Series flat face type hydraulic quick coupling

Features

FK-FF Series couplings feature:

◆ New walve design. it cans resistance damage from high flow andthe pressure of impulse that providing advanced performance.

◆ Sleewe locking mechanism isengaged by rotating sleeve afterconnection. It prevents accidental disconnection when couplingis dragged along the ground.

◆ Sleeve mechanism is designed to help prevent dirt from enteringthe internal mechanism and ithus causing faulty operation whenconnecting or disconnecting.The sleeve cowers the retaining ringand also incorpor ates a dust seal in the springarea.

◆ Hardened nipples and sleeves and solid barstock constructionmake for a quality coupling with maxilimum resistance to damagefrom hydraulic and mechanical shock.

◆ This Anti-Blowout Nitrile/PTFE bonded seal is designed to preventblow-out or damage during severe service conditions.

◆ Durable ball-locking mechanism assures reliable connection everytime.A llargenumber of lacking balls distributes and work load evenlywhile providing alignmentand swiveling action to reduce hose torqueand prolang hose life.CAUTION: Theseproducts are not to be usedas swivels;rolation under pressure will result in excessive andpremature wear.
