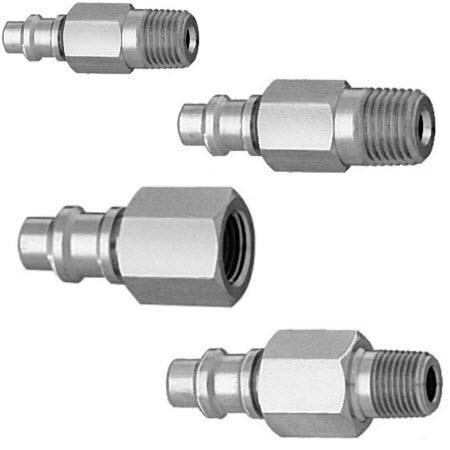

Male quick connect fitting

Male quick connect fitting is a quick connector mainly used for air piping and pneumatic tools.

Connection fittings can achieve pipeline connection or disconnection without tools. When the joints are not connected-when the ferrule of the mother body moves to the other end, the stainless steel ball automatically rolls outward, and the daughter body is due to the common valve of the mother body and the daughter body. The force of the spring force is operated and disconnected, and the valves of the daughter body and the mother body are respectively closed, and the fluid flow is instantly blocked.

Quick connect fittings plastic are generally suitable for pneumatic tools such as air pipelines, air compressors, grinders, air drills, impact wrenches, and air screwdrivers. When not connected - when the ferrule of the mother body moves to the other end, the stainless steel ball rolls outward automatically, the daughter body is bounced open by the reaction force of the valve spring, and the valve can be automatically closed to block the fluid flow.

When linking - when the daughter body is inserted into the mother body side with the ferrule, the valve is opened to allow fluid flow, the gasket is pushed back to its original position by the force of the spring, the stainless steel ball will lock to ensure the daughter/mother body connection, the gasket inside Can completely block the leakage of fluid. Common faster couplers are: EU series European Type Quick Coupling, EM series European Mini Type Quick Coupling, GE series German Type Quick Coupling.

For more information, please feel free to Contact us.
