How Does a Pneumatic Manifold Work?
The working principle of a pneumatic manifold is based on distributing compressed air from a single source to multiple output ports,
coordinating airflow through a control system to drive various pneumatic components or devices.
In simple terms, it functions as the "distribution hub" of a pneumatic system, enabling efficient air or gas management and control.
The process generally involves the following six steps:
Air Inlet：Compressed air enters the pneumatic manifold through an inlet port,
which is typically connected to an air source such as an air compressor via a pipeline system.

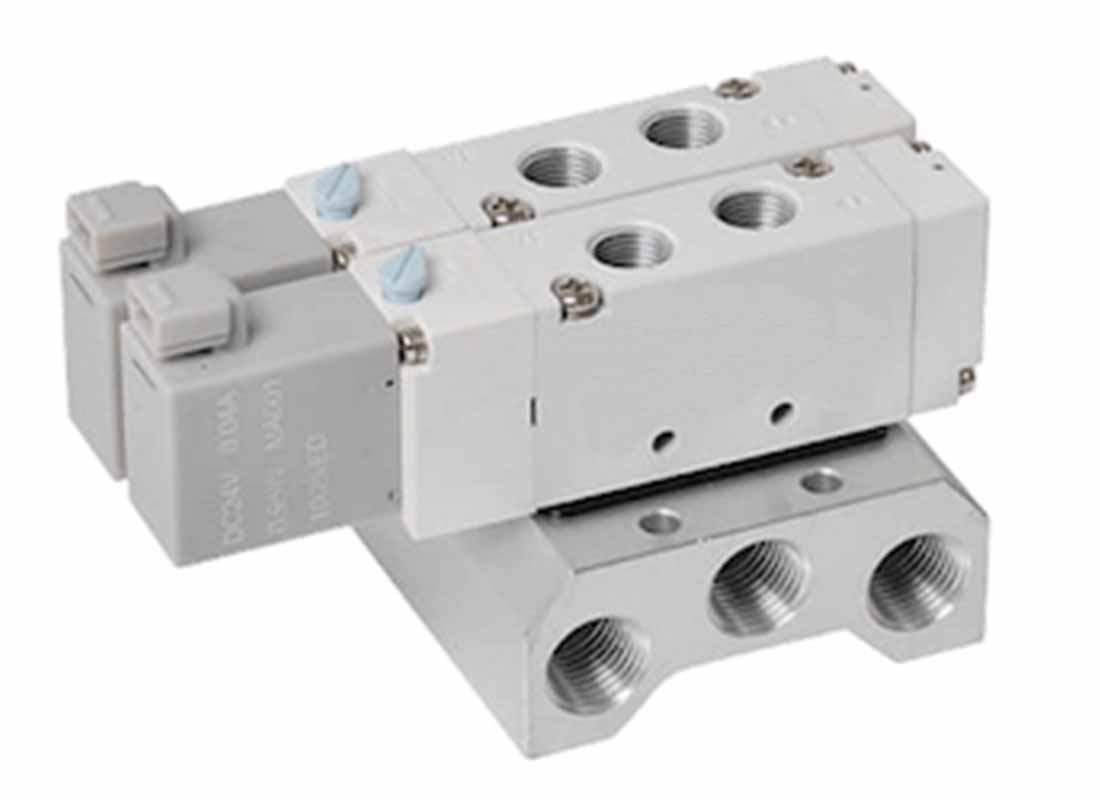

Airflow Distribution：The core function of the manifold is to distribute the incoming compressed air to multiple output ports.
Each port is usually connected to a pneumatic component, such as a cylinder, solenoid valve, or actuator.
The manifold ensures the air is distributed evenly or as needed to different channels, meeting the operational requirements of each
component in the system.
Flow Control：Pneumatic manifolds often integrate one or more control valves to regulate the direction and flow rate of the air.
These valves can be operated manually or adjusted automatically via electronic or pneumatic signals. For example,
when air needs to be directed to a specific pneumatic device,
the corresponding valve opens or closes based on the control signal to guide the airflow along the desired path.
Pressure Regulation：To maintain system stability, a pressure regulator may be installed on the manifold to precisely control the air
pressure within the system.
This allows different output ports to deliver air at varying pressures according to operational needs,
ensuring efficient performance of the pneumatic components.
Monitoring and Feedback：Pneumatic manifolds are commonly equipped with monitoring devices such as pressure sensors
and gauges to track and measure changes in airflow.
This real-time data allows users to adjust system settings and ensure reliable performance under varying load conditions.
Air Return and Exhaust：After completing its task, the used or excess air may need to be directed back through the system
and vented out via exhaust ports or valves.
This process ensures a closed-loop operation within the pneumatic system.
Advantages of Pneumatic Manifolds
Pneumatic manifolds offer a range of significant advantages in industrial applications.
They help optimize the overall layout of equipment, making system configurations more organized.
By reducing the use of long hoses and excessive piping connections, manifolds not only save installation space but also enhance the system’s visual neatness.
At the same time, the shortened transmission path for air or fluid minimizes pressure loss and thermal fluctuations,
thereby improving energy efficiency. Additionally, the compact design of manifolds simplifies the installation process,
helping reduce installation costs and the number of required pipe fittings.
With fewer connections, the risk of leaks caused by fatigue or long-term use is also significantly reduced, leading to improved system reliability.
In practical use, manifolds serve as integrated platforms for multi-channel output.
They can connect multiple pipelines and also act as a central supply hub for equipment rooms or large-scale machinery.
Overall, pneumatic manifolds deliver outstanding advantages in terms of functionality, efficiency, and safety—far outweighing their potential limitations.
Applications of Manifolds
Manifolds are widely utilized across various industries due to their efficient distribution capabilities for gases or liquids.
Below are some typical application areas:
Automotive Industry
In automotive pneumatic control systems, manifolds distribute compressed air to multiple cylinders or control elements,
such as in air suspension systems, brake systems, or automation modules on assembly lines.
The intake manifold is also a critical component of engine systems, responsible for evenly distributing air to each cylinder.
Industrial Automation and Manufacturing
Manifolds are used in pneumatic or hydraulic systems to deliver compressed air or fluid to multiple actuators or tools, such as robotic arms, cylinders, and clamps.
On production lines, they efficiently supply air to multiple workstations, simplifying pipeline layouts and enhancing system maintainability.
Pharmaceutical and Medical Equipment
Medical devices like ventilators and anesthesia systems use gas manifolds to control the distribution of oxygen, air, nitrous oxide, and other gases.
In laboratory analytical instruments, manifolds support precise fluid distribution and sample control.
Food and Beverage Processing
During beverage filling or packaging, manifolds are used in pneumatic actuators or air-cleaning systems.
Vacuum packaging equipment often incorporates pneumatic manifolds to control vacuum generators or suction cup systems.
Oil, Gas, and Chemical Industries
Manifolds are employed for multi-channel liquid and gas distribution and pressure control, especially in oil and gas extraction, transportation, and chemical process control systems.
They are also used to distribute different chemical reagents or raw materials across multiple process lines.
HVAC (Heating, Ventilation, and Air Conditioning) Systems
In chilled or hot water networks, manifolds are used to manage and distribute refrigerant or hot water to multiple end devices.
Underfloor heating systems commonly rely on manifolds for loop distribution and temperature balance control.
These applications highlight the manifold’s critical role in improving efficiency, organization, and performance across a wide range of systems.
Summary

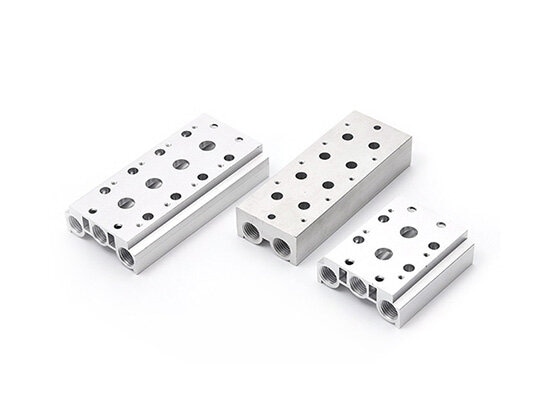

Fokca provides a manifold that is compatible with different types of valves such as XQ Series Quick Exhaust Valve, MOV Series Mechanical Valve, JM Series Mechanical Valve, QE Series Quick Exhaust Valve, etc.The following are the specific features of the product：
