Pneumatic operated 2-way valves

Design

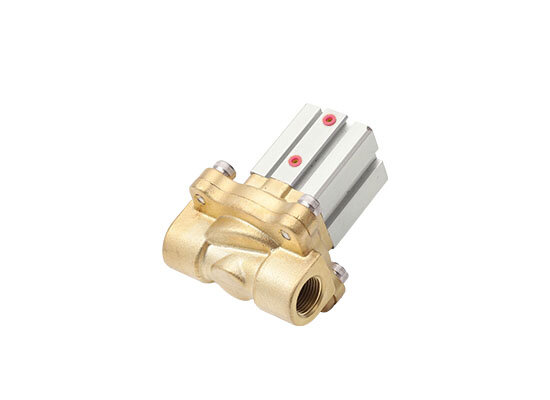

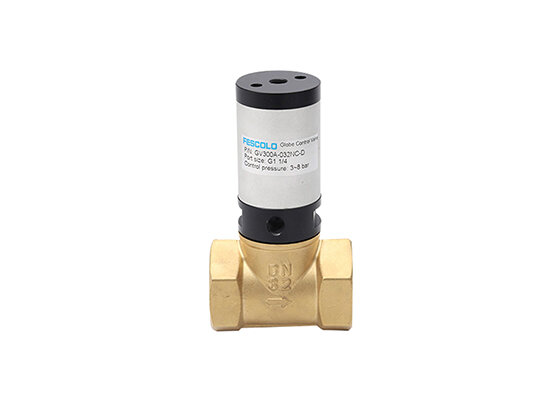

A pneumatic operated 2-way valve consists of a valve body, a valve stem, and a pneumatic actuator.

The valve body is usually made of metal and has two ports, an inlet, and an outlet. The valve stem is connected to the actuator and is used to open or close the valve. The pneumatic actuator is responsible for moving the valve stem and controlling the flow of fluid or gas. It consists of a piston, a cylinder, and a solenoid valve.

Working principle

The working principle of a pneumatic operated 2-way valve is simple. When the solenoid valve is energized, compressed air is directed to the pneumatic actuator, which moves the piston and the valve stem to open the valve.

When the solenoid valve is de-energized, the compressed air is released from the actuator, and the valve stem is moved to close the valve.

Applications

Pneumatic operated 2-way valves are used in various applications, including air conditioning, refrigeration, water treatment, and process control.

They are often used to control the flow of fluids and gases in pipelines and other industrial processes. Pneumatic operated 2-way valves are ideal for applications where fast response times and accurate control are essential.

Advantages

Pneumatic operated 2-way valves have several advantages over other types of valves. They are simple to operate and maintain, and they can be controlled remotely. Pneumatic operated 2-way valves are also more reliable than other types of valves, and they are less likely to leak or fail. Additionally, they are capable of fast response times, which makes them ideal for applications where quick and accurate control is necessary.

In conclusion, pneumatic operated 2-way valves are a critical component of many industrial processes. They are simple to operate, reliable, and offer fast response times, making them an ideal choice for controlling the flow of fluids and gases in pipelines and other industrial applications.

The design and working principle of pneumatic operated 2-way valves are relatively simple, and they are widely used in many industries, including air conditioning, refrigeration, water treatment, and process control.
