In both everyday applications and industrial environments, pneumatic systems are everywhere. These systems rely on the efficient delivery and control of compressed air to power everything from simple mechanical movements to highly complex, precision-driven processes. As system demands increase—particularly in automation, robotics, or high-speed operations—so too does the need for more accurate and reliable air flow control.
To ensure optimal regulation of air flow, pressure, and direction, pneumatic solenoid valves are essential. Designed to meet the rigorous demands of modern automation, the solenoid pneumatic valve—also known as a solenoid valve pneumatic—plays a crucial role across a wide range of industries. These include industrial automation systems, HVAC units, mobile and stationary machinery, chemical processing plants, automotive air brake systems, medical equipment, and aircraft landing gear or actuation systems.
Why is it so important to understand how a pneumatic solenoid valve works? Because proper selection and smart integration can significantly improve system stability, energy efficiency, and control precision. Whether you’re using an ASCO pneumatic solenoid valve for robust industrial applications, an SMC pneumatic solenoid valve for compact and high-performance designs, a 12V pneumatic solenoid valve for low-voltage environments, or a Festo pneumatic solenoid valve for advanced automation setups, the right valve makes all the difference.
This article will break down the core operating principles of pneumatic solenoid valves, review the most common configurations available on the market, and highlight the advantages each design offers. Our goal is to help you confidently choose the ideal solution for your pneumatic control system—backed by technical insight and industry-proven performance.
You can quickly browse the following content through the following navigation：
◆ How Do Pneumatic Solenoid Valve Work
◆ Advantages of Pneumatic Electromagnetic Valves
◆ Types Of Pneumatic Solenoid Valves
Understanding the Pneumatic Solenoid Valve Working Principle
Pneumatic solenoid valves may seem like simple components, but their internal mechanisms are a fine blend of precision engineering and responsive control. At the heart of efficient pneumatic systems, these valves regulate the flow of compressed air to control actuators, cylinders, and various automated processes. So, how exactly do pneumatic solenoid valves work?
A pneumatic solenoid valve consists of two primary sections: the electrical system and the mechanical valve body. Together, these components enable accurate directional control of gases.
Electromechanical Unit: This part contains the solenoid coil, switches, and often a controller. It serves as the interface between the electrical signal and the mechanical motion within the valve, facilitating precise actuation of pneumatic components like cylinders and actuators.
Valve Body: Typically houses the solenoid, plunger (or armature), and multiple ports. The internal arrangement may vary depending on the required solenoid valve working principle and control application.
The fundamental solenoid operated valve working principle revolves around the interaction between the solenoid coil and the plunger.
Electromagnetic Activation: When an electric current is applied to the solenoid coil, it generates a magnetic field that shifts the plunger connected to a sealing mechanism. Depending on the plunger’s position within the valve body, orifices are either opened or closed to allow or block airflow.
Airflow Regulation: When orifices open, compressed air enters the valve chamber. This airflow creates the force needed to shift internal control elements (like spools or pistons), guiding or regulating the direction of air through the pneumatic system.
Most pneumatic solenoid valves use a spool-type design for smooth and reliable operation.
Design Highlights: The valve body contains a cylindrical chamber connected to multiple ports. A spool with seals slides inside this chamber. The spool's position determines which ports are open or closed, enabling bidirectional flow.
Electromagnetic Actuation: While the magnetic force from the solenoid coil moves the spool, the working pressure of the compressed air may also assist in certain conditions—especially in double acting solenoid valve working principle setups. However, in general-purpose applications, the air pressure's influence is minimal compared to the electromagnetic force.
Spring Return Design: In many valves, a mechanical spring is incorporated to return the spool or plunger to its default position when power is removed. The solenoid valve working principle must account for this force to ensure proper actuation.
Plunger Reset: Once the electrical current is reversed or cut off, the plunger returns to its original position—often sealing the orifice and stopping airflow.
Solenoid valves used in pneumatic direction control can either be direct acting or pilot operated.
Direct Acting Solenoid Valve: These operate entirely through the solenoid’s force, suitable for low-flow applications.
Pilot Operated Solenoid Valve: Far more energy-efficient, these use a small electric signal to control a pilot valve, which then uses system pressure to shift the main valve—common in industrial pneumatic systems due to their low power consumption and scalability.
While pneumatic solenoid valves are ideal for regulating compressed air or inert gases, they are not suitable for liquids. These valves are built to accommodate minimal leakage—acceptable in gas systems but potentially hazardous in fluid-based setups.
Use only in applications involving compressed air or compatible gaseous media, and ensure correct valve type selection for reliable and safe performance.
Pneumatic solenoid valves can quickly switch between open and closed states, making them an ideal choice for applications that require quick start-up.
They can precisely control air flow, pressure, and direction, which is crucial for automation and precision systems.
These valves can be remotely electrically controlled, reducing the need for manual intervention and improving safety and convenience.
Pneumatic solenoid valves are designed to be compact and can be integrated into tight or complex machine layouts.
They consume very little electricity and only consume power during switching, thereby reducing the energy cost of continuous operation.
Due to the small number of moving parts and simple internal mechanisms, they require minimal maintenance and have high reliability.
Suitable for various industries, such as:
Industrial Automation
HVAC
medical equipment
Automotive air brake system
Packaging Machinery
They can be easily integrated into programmable logic controllers (PLCs) to achieve intelligent and automated system design.
There are several types of pneumatic solenoid valves available on the market today. Before selecting a specific valve for an application, it is essential to understand the function and classification of each valve type. These valves are typically categorized based on the number of ports, positions, and flow paths (ways). The configuration of ports and positions defines the operational capabilities and control logic of a pneumatic solenoid valve.
Ports – These are the openings or connection points on the valve body. They serve as inlets or outlets that allow compressed air (or other gaseous media) to enter or exit the valve, enabling flow through the system.
Positions – A valve’s position refers to the state of its internal flow paths or passages. Positions determine how different flow paths are connected or blocked under specific conditions. Certain positions allow the passage of air through selected ports, while others restrict or reroute the flow.
Ways – These refer to the number of discrete flow paths that compressed air can take through the valve. Each "way" corresponds to a defined route within the valve’s internal structure that directs the airflow during operation.
A clear understanding of these key elements—ports, positions, and flow ways—is crucial to accurately interpreting valve nomenclature and functionality. Let's now explore the main types of pneumatic solenoid valves and delve deeper into their working principles.

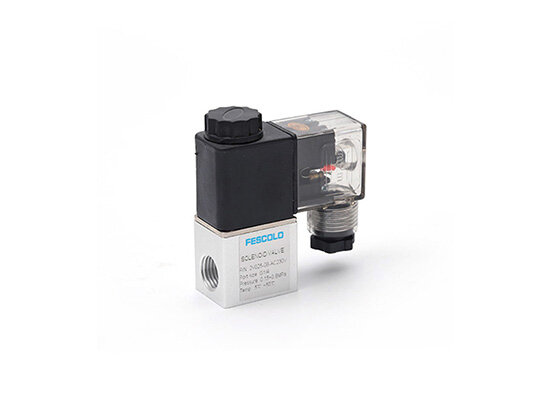

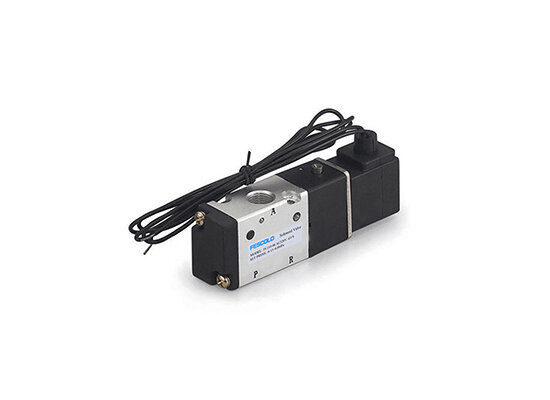

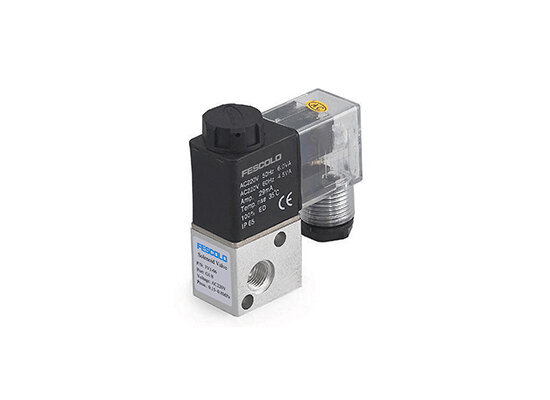

◆ 3V Series 2positions/3ways Solenoid Valve

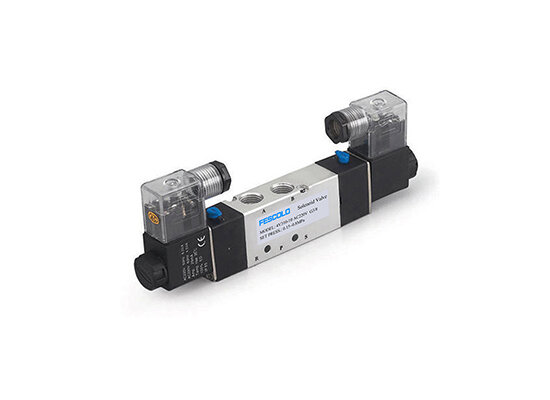

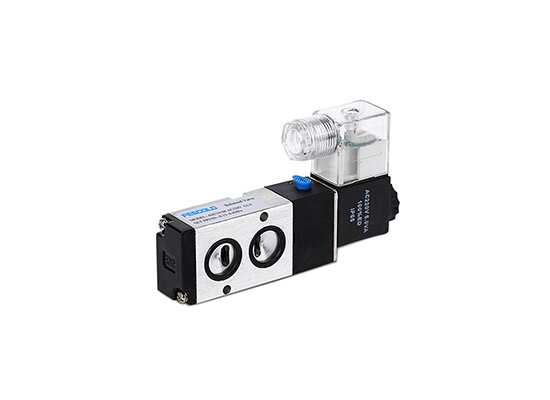

◆ 4V Series 2positions/5ways or 3positions/5ways Solenoid Valve

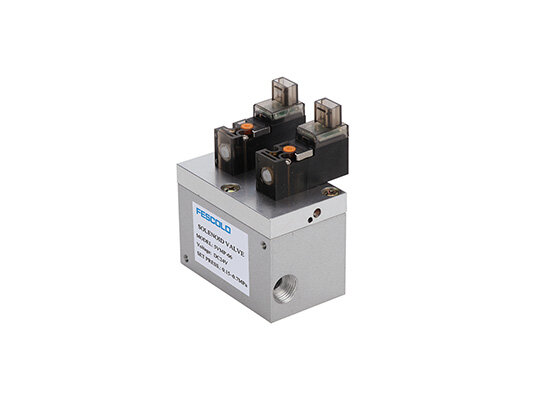

◆ 4M (NAMUR)Series 2positions/5ways Board Solenoid Valve
Step 1: Disconnect the Power Supply
Before performing any maintenance, ensure all power to the solenoid valve is completely shut off. This critical safety step prevents accidental activation or electrical hazards during the cleaning process.
Step 2: Remove the Solenoid Valve from the System
Using appropriate hand tools such as a wrench or pliers, carefully detach the solenoid valve from the system. Be sure to document or remember its installation orientation, as this will be essential for accurate reinstallation.
Step 3: Disassemble the Valve Components
Proceed to disassemble the solenoid valve by separating the coil, valve housing, and internal moving parts. Handle each component with care to avoid unintentional damage during this process.
Step 4: Inspect for Wear or Damage
With the valve disassembled, perform a detailed visual inspection of all parts. Look for wear on seals, O-rings, and internal surfaces. Damaged components should be replaced to ensure reliable valve performance after reassembly.
Step 5: Soak the Components in Cleaning Solution
To effectively clean solenoid valve components, soak them in a suitable cleaning solution such as a mild detergent or a vinegar-water mixture. This soaking phase helps loosen and dissolve any accumulated debris or mineral deposits.
Step 6: Gently Brush the Parts
Using a soft-bristled brush or toothbrush, gently scrub each component to remove remaining residues. Focus on small ports, orifices, and internal cavities to ensure a deep and thorough clean.
Step 7: Rinse with Clean Water
After brushing, rinse all valve components thoroughly with clean water. This step is critical to remove any traces of the cleaning solution that could compromise the valve’s operation.
Step 8: Use Compressed Air to Remove Debris
Dry the cleaned parts using compressed air to eliminate residual moisture and dislodge any remaining particulate matter. This helps maintain the solenoid valve's internal cleanliness and performance integrity.
Step 9: Reassemble the Valve Accurately
Once all components are dry and free from contaminants, carefully reassemble the solenoid valve. Ensure seals and O-rings are correctly placed or replaced if needed, and all parts are aligned as per the original configuration.
Step 10: Reinstall the Valve into the System
Reattach the valve to its designated location within the pneumatic or fluid system. Use tools to secure it firmly, ensuring correct orientation for optimal function.
Step 11: Restore Power and Test Operation
Restore power and activate the solenoid valve. Confirm proper opening and closing action, verifying that the cleaning process was successful and that the valve is functioning as expected.
Step 12: Monitor Performance Post-Cleaning
Continue to monitor the valve over time to ensure stable operation. Routine maintenance and regular cleaning are essential for the long-term reliability of any solenoid valve in a demanding system.
