Characteristic
◆ Resists moisture and mold, applicable for wet and bacterial environment
◆ Resists low temperature
◆ Long working life
◆ Anti-UV and anti-aging,applicable for exposure to sunlight
◆ FDA approved
Specification
| Material | Excellent thermoplastic polyurethane |
| Applicable medium | Air, Water, Vacuum |
| Embient and fluid temperature | -40℃~+80℃ |
| Hardness Shore A | 95~98A ASTM D-2240 |

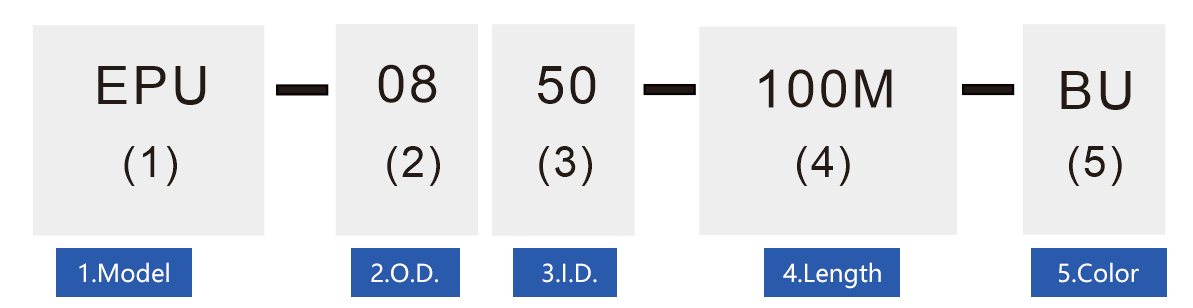

Ordering code

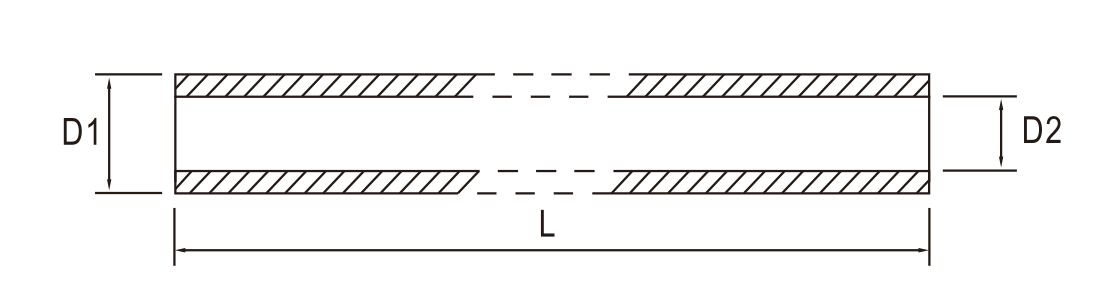

ITEM | D1 | D2 | L | Net weight（kg/Roll） | MAX.workingpressureat 20℃（bar） | Max.burst.pressureat 20℃（bar） | MAX.bendradiusat 20℃（mm） |
| EPU-0425 | 4mm | 2.5mm | 200m | 1.9 | 10bar | 30bar | 10mm |
| EPU-0640 | 6mm | 4mm | 200m | 3.9 | 10bar | 30bar | 15mm |
| EPU-0855 | 8mm | 5.5mm | 100m | 3.3 | 8bar | 24bar | 20mm |
| EPU-0850 | 8mm | 5mm | 100m | 3.8 | 10bar | 30bar | 20mm |
| EPU-1065 | 10mm | 6.5mm | 100m | 5.6 | 10bar | 30bar | 30mm |
| EPU-1280 | 12mm | 8mm | 100m | 7.8 | 10bar | 30bar | 35mm |
| EPU-5/32 | 3.94mm | 2.5mm | 200m | 1.9 | 10bar | 30bar | 10mm |
| EPU-1/4 | 6.35mm | 4.23mm | 200m | 4.4 | 10bar | 30bar | 15mm |
| EPU-5/16 | 7.94mm | 5mm | 100m | 3.8 | 10bar | 30bar | 20mm |
| EPU-3/8 | 9.52mm | 6.35mm | 100m | 4.9 | 10bar | 30bar | 30mm |
| EPU-1/2 | 12.7mm | 8.46mm | 100m | 8.8 | 10bar | 30bar | 35mm |
