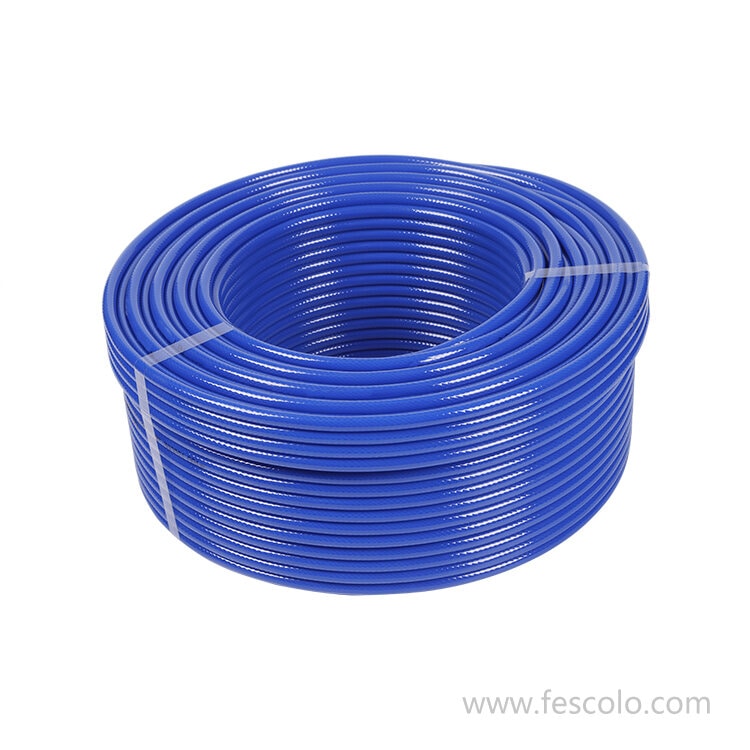

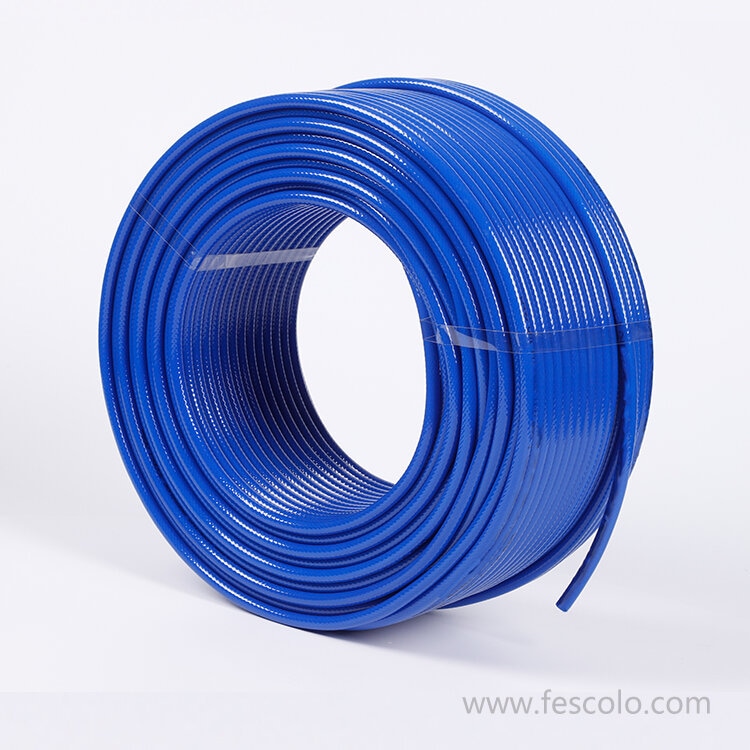

FR Straight-in Polyurethane Hose

FR Straight-in Polyurethane Hose


Characteristic

 Silicon and Halogen free

 Flame resistant and self-exinguishing

 Resists abrasion and impact

 Resists oil, oxygene,ozone,weak acide,diluted base

 Resists UV


Inquire Now
  • Dimension
  • Details

Characteristic


 Silicon and Halogen free

 Flame resistant and self-exinguishing

 Resists abrasion and impact

 Resists oil, oxygene,ozone,weak acide,diluted base

 Resists UV




Specification


MaterialThermoplastic Polyurethane
Applicable medium Air, Water, other fluids
Embient and fluid temperature-30℃~+90℃
Hardness Shore A 98A  ASTM D-2240

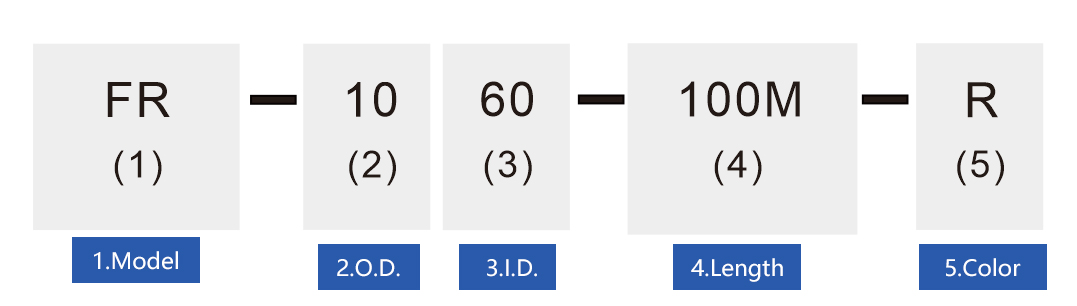

Ordering code



FR Straight-in Polyurethane Hose


FR Straight-in Polyurethane Hose

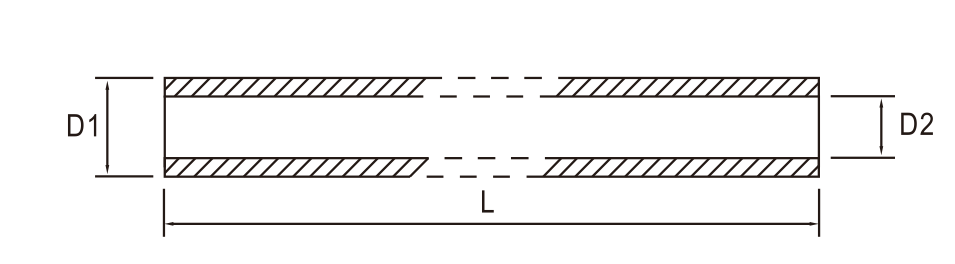

 ITEM

D1

D2

 L

MAX.working

pressure

  at 20℃(bar)

Max.burst

pressure

at 20℃(bar)

  MAX.bend

radius

 at 20℃(mm)

FR-0640
6mm
4mm100m14bar
44bar15mm
FR-0840
8mm
4mm100m20bar
64bar20mm
FR-0855
8mm
5.5mm100m12bar
36bar25mm
FR-1060
10mm
6mm100m16bar
50bar35mm
FR-1070
10mm
7mm100m12bar
36bar40mm
FR-1280
12mm
8mm100m13bar
40bar45mm
FR-1410
14mm
10mm100m12bar
36bar60mm
FR-1611
16mm
11mm100m12bar
36bar70mm
