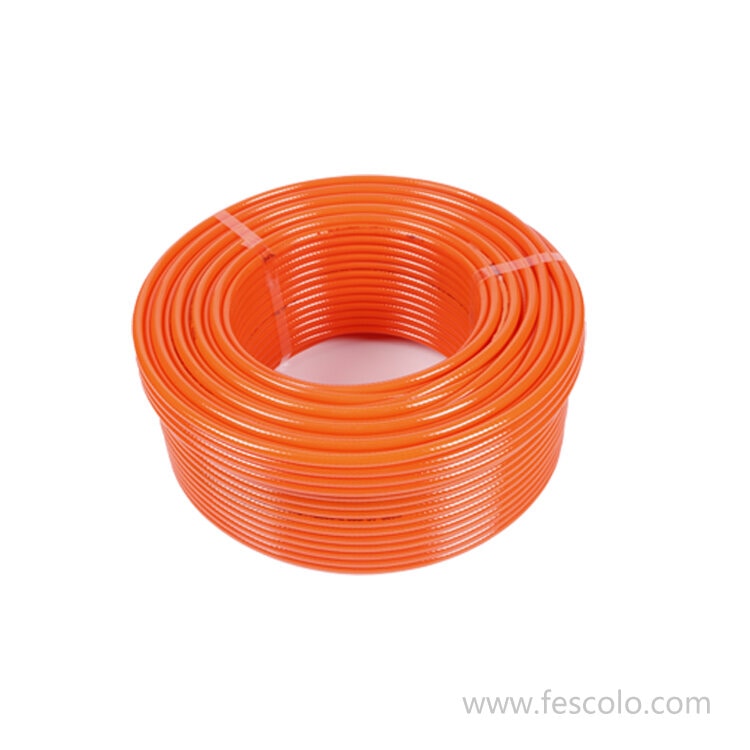

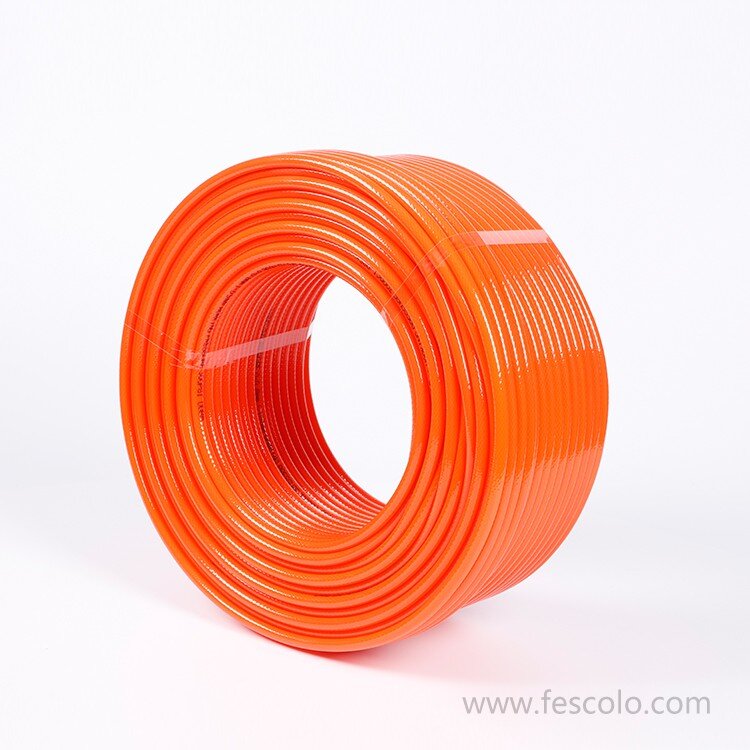

PUB Braided Polyurethane Tube

PUB Braided Polyurethane Tube


Characteristic

◆ Resists abrasion and impact

◆ Resists oil and many chemicals with no erosive nature

◆ Long working life

◆ Precise size and wall uniform

◆ With excellent flexibility and restoring force


Inquire Now
  • Dimension
  • Details

Characteristic


◆ Resists abrasion and impact

◆ Resists oil and many chemicals with no erosive nature

◆ Long working life

◆ Precise size and wall uniform

◆ With excellent flexibility and restoring force





Specification


MaterialPolyurethane braided with Textile
Applicable medium Air, Water, Vacuum
Embient and fluid temperature-20℃~+80℃
Hardness Shore A 85A/90A  ASTM D-2240
Tensile strength(kg/cm2) 500  ASTM D-638
Ultimate elongation(%) 590~690  ASTM D-638
Taber abrasion(mg) 30~40 ASTM D-1044
Tear strength(kg/cm2) 115  ASTM D-732

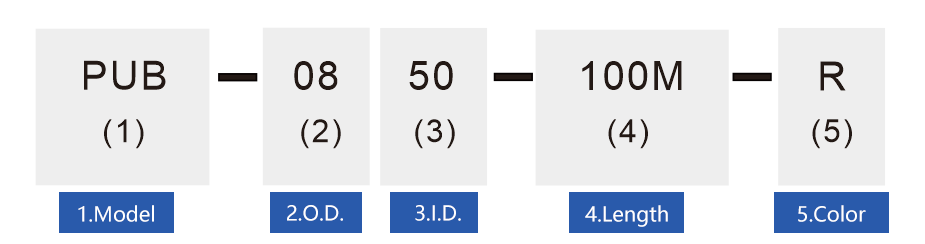

Ordering code


PUB Braided Polyurethane Tube




PUB Braided Polyurethane Tube

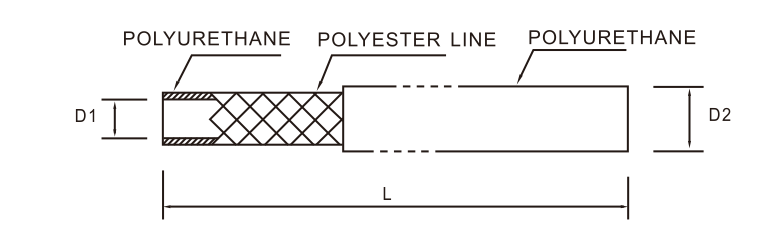

 ITEM

D1

D2

 L

 Net weight

(kg/Roll)

MAX.working

pressure

  at 20℃(bar)

Burst.working

pressure

at 20℃(bar)

  MAX.bend

radius

 at 20℃(mm)

PUB-0850
5mm
8mm100m3.820bar
60bar20mm
PUB-1065
6.5mm
10mm100m5.620bar
60bar30mm
PUB-1280
8mm
12mm100m7.820bar
60bar40mm
PUB-1410
10mm
14mm100m9.520bar
60bar60mm
PUB-1612
12mm
16mm100m1120bar
60bar75mm
PUB-3/8
6.35mm
9.5mm100m4.920bar
60bar30mm
PUB-1/2
8.46mm
12.7mm100m8.820bar
60bar40mm
