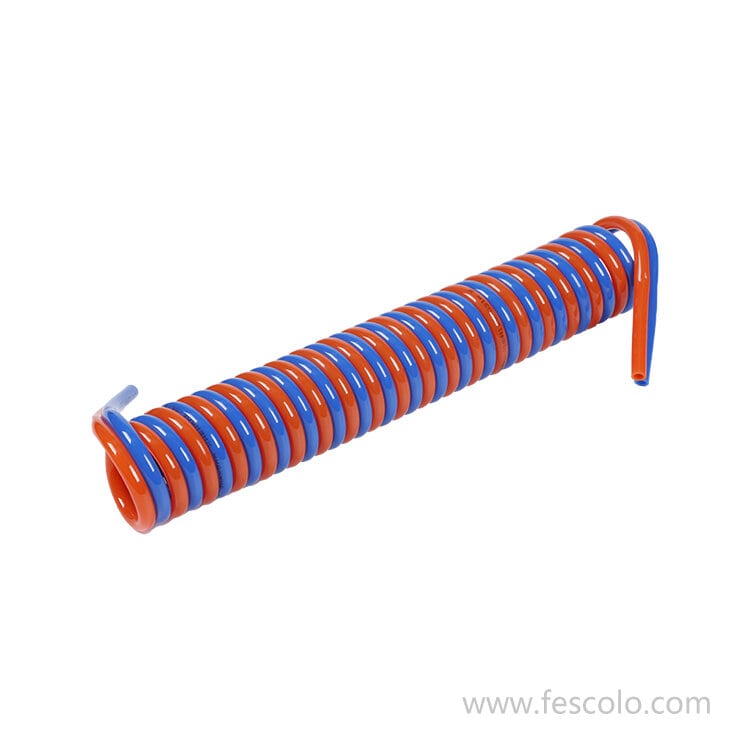

PUC Multi-row Coil Tube

PUC Multi-row Coil Tube


Characteristic

◆ Resists oil and many chemicals with no erosive nature

◆ Resists abrasion and impact

◆ Long working life

◆ Precise size and wall uniform

◆ With excellent flexibility and restoring force


Inquire Now
  • Dimension
  • Details

Characteristic


 Resists oil and many chemicals with no erosive nature

 Resists abrasion and impact

 Long working life

 Precise size and wall uniform

 With excellent flexibility and restoring force





Specification


MaterialThermoplastic Polyurethane
Applicable medium Air, Water, Vacuum
Embient and fluid temperature-20℃~+80℃
Hardness Shore A 98A  ASTM D-2240
Tensile strength(kg/cm2600  ASTM D-638
Ultimate elongation(%) 440~540  ASTM D-638
Taber abrasion(mg) 30~40 ASTM D-1044
Tear strength(kg/cm2165  ASTM D-732

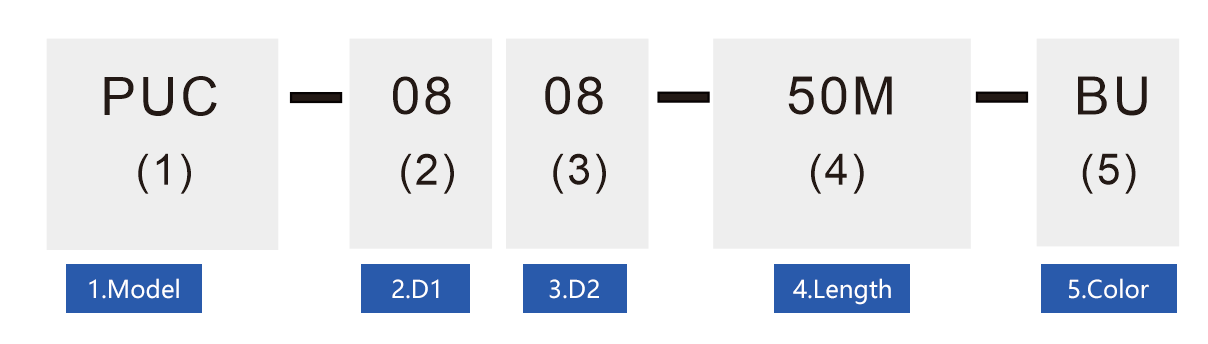

Ordering code

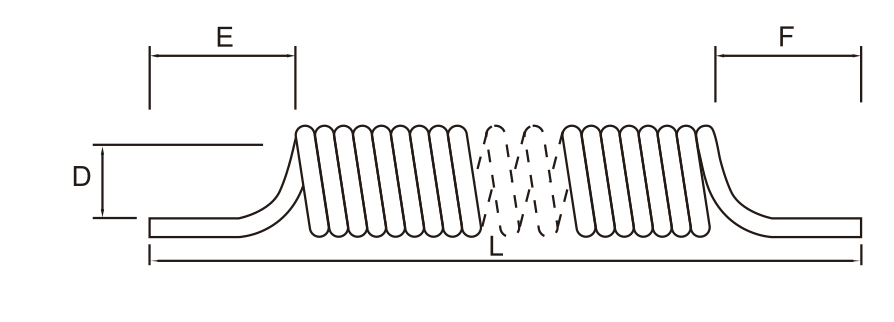

  PUC Multi-row Coil Tube




PUC Multi-row Coil Tube



 ITEM

D1

D2

 L

 Net weight

(kg/Roll)

PUC-0425
25mm
1-20m80mm80mm
PUC-0640
32mm
1-25m80mm80mm
PUC-0855
40mm
1-20m80mm80mm
PUC-0850
40mm
1-20m80mm80mm
PUC-1065
48mm
3-20m80mm80mm
PUC-1280
58mm
3-20m80mm80mm
PUC-1/4
32mm
1-20m80mm80mm
PUC-3/8
48mm
3-20m80mm80mm
PUC-1/2
58mm
3-20m80mm80mm
