Rotary cylinder

Rotary cylinder—that is, a cylinder in which the intake and exhaust ducts and the air guide head are fixed and the cylinder body can rotate relatively and act on the machine tool fixture and wire coiling device. It is a cylindrical metal that guides the piston to perform linear reciprocating motion. parts.

The rotary air cylinder is mainly composed of a guide head, a cylinder block, a piston and a piston rod.

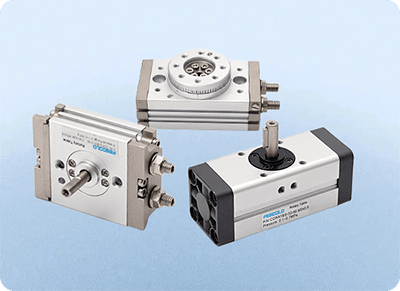

When the rotary cylinder works, the external force drives the cylinder body, the cylinder head and the air guide head to rotate, while the piston and the piston rod can only make a reciprocating linear motion, and the air guide body is connected to the pipeline and is fixed. The working environment is ‐5~60℃, and the fluid used is: no oil supply air (oil supply can also be used). Our rotary cylinder and SMC rotary cylinder work on the same principle, our common rotary cylinders are: MSQ Series Rotary Table, CRQ2 Series Compact Rack&Pinion Rotary Table.

Rotary cylinders are mainly used in printing (tension control), semiconductor, automation control, robotics and other fields.

For more information, please feel free to Contact us.
