Specification
| Item | Parameter |
| Working medium | Air, Steam, Water, Vacuum or other liquid |
| Pressure Range | 0~2.0MPa |
| Negative Range | -100KPa |
| Proof pressure | 3.0MPa |
| Ambient temperature | -20~120℃ |
| Material of body | SUS304, SUS316, SUS316L |
| Material of sealing | FKM(Viton) |
| Applicable tube | PU,PE,Nylon(pa),PVC and Teflon tubing |
Ordering Code
Fitting type（1）
| Code | Type | Code | Type | Code | Type |
| SPB | Male T branch | SPJ | Plug reducer | SPP | Plug |
| SPC | Male straight | SPK | Multiple branch | SPCF | Female straight |
| SPD | Male T branch | SPL | Male 90° elbow | SPU | Straight union |
| SPE | T branch | SPM | Bulkhead fitting | SPV | 90° elbow |
| SPH | Banjo Fitting | SPOC | Round straight | SPX | Male Y branch |
| SPY | Y branch | SPZA | Cross | SPLF | Female elbow |
| SSC | Speed control | SSU | Speed control | SPMF | Bulkhead fitting |
Tube O.D. (2)
| Metric size | 04 | 06 | 08 | 10 | 12 | 14 | 16 |
| Inch size | 1/8" | 5/32" | 1/4" | 5/16" | 3/8" | 1/2" |
Thread size (3)
| Metric | BSP | PT | NPT |
| M5 | G01: G1/8 | 01: 1/8"PT | N01:1/8"NPT |
| M6 | G02: G1/4 | 02: 1/4"PT | N02:1/4"NPT |
| M8 | G03: G3/8 | 03: 3/8"PT | N03:3/8"NPT |
| M10 | G04: G1/2 | 04: 1/2"PT | N04:1/2"NPT |
| M12 | G06: G3/4 | 06: 3/4"PT | N06:3/4"NPT |
| M14 | |||
| M16 | |||
| M18 |

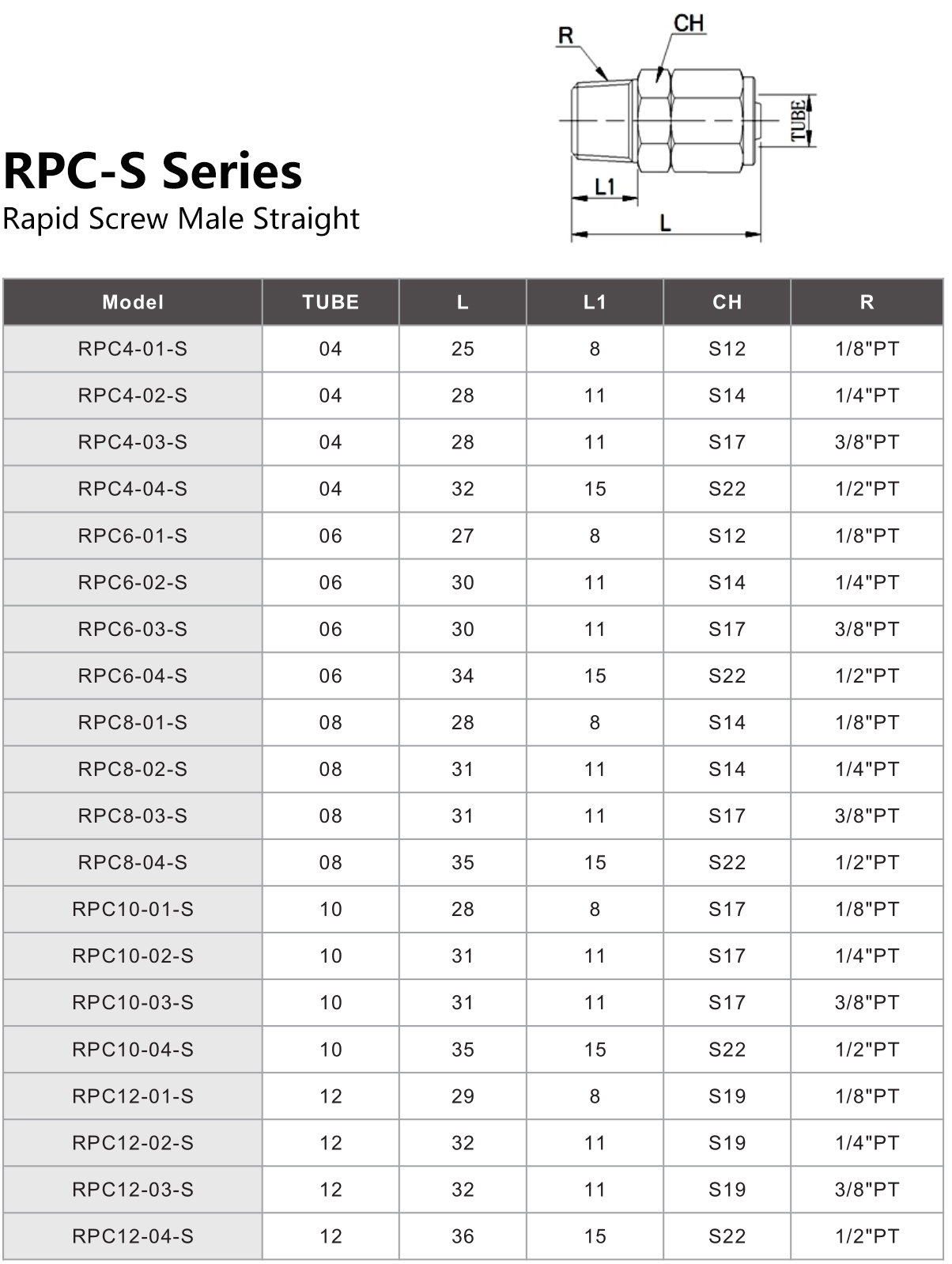

Dimension

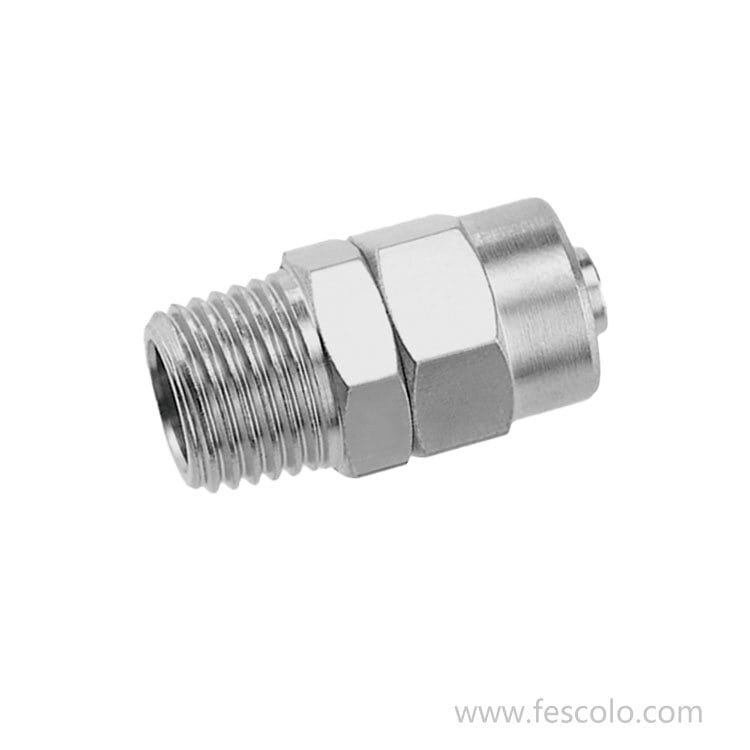

The RPC-S Series Rapid Screw Male Straight fittings are designed to offer a swift and efficient solution for pneumatic connections.
These fittings feature a unique Rapid Screw mechanism, enabling users to make secure, leak-proof connections quickly, saving time and effort during installations.
Whether you are a professional installer or working in a fast-paced environment, the RPC-S Series provides a hassle-free experience with its reliable and user-friendly design.
Key Features of the RPC-S Series Rapid Screw Fittings
Rapid Screw Mechanism:
The standout feature of the RPC-S Series is its Rapid Screw design. This allows for a quick, tool-free installation, ensuring a tight connection with minimal effort.
Durability:
Made from high-quality materials, the RPC-S Series is built to last. It resists wear and tear, ensuring it can withstand the pressures and demands of various applications.
Leak-Proof Seal:
Thanks to the precision engineering behind the Rapid Screw mechanism, these fittings create a secure, leak-proof seal, enhancing the overall reliability of your pneumatic system.
Ease of Use:
The intuitive design of the RPC-S Series fittings means they can be easily installed by hand, eliminating the need for extra tools or specialized knowledge.
Applications of RPC-S Series Rapid Screw Male Straight Fittings
The RPC-S Series Rapid Screw Male Straight fittings are suitable for a wide range of industries where pneumatic systems play a crucial role. Some of the key applications include:
Manufacturing:
In manufacturing environments, the RPC-S Series provides fast and reliable pneumatic connections for assembly lines, robotics, and automation equipment.
Food and Beverage Processing:
The quick-connect design is ideal for systems requiring frequent maintenance and fast changeovers in food production lines.
Automotive:
In the automotive industry, these fittings are used in assembly operations and testing equipment, where rapid and secure connections are vital.
Packaging:
Pneumatic systems in packaging lines benefit from the durability and ease of installation offered by these fittings.
Material Handling:
For pneumatic conveyors and material handling systems, the RPC-S Series ensures smooth and efficient operations.
Benefits of the RPC-S Series for Pneumatic Systems
Increased Productivity: The Rapid Screw feature enables quick connections, reducing downtime and improving overall system efficiency.
Cost-Effective: The ability to install the fittings without specialized tools reduces labor costs, making them a cost-effective solution for many businesses.
Versatility: Suitable for a variety of industries, these fittings are adaptable and reliable in different pneumatic systems, ensuring long-term performance across diverse applications.
The RPC-S Series Rapid Screw Male Straight fittings stand out for their fast, secure, and durable connection capabilities.
Whether you're installing a pneumatic system in manufacturing, automotive, food processing, or material handling, these fittings offer a reliable and user-friendly solution.
The Rapid Screw feature simplifies installation and reduces downtime, making them a great choice for any application requiring quick and efficient pneumatic connections.
