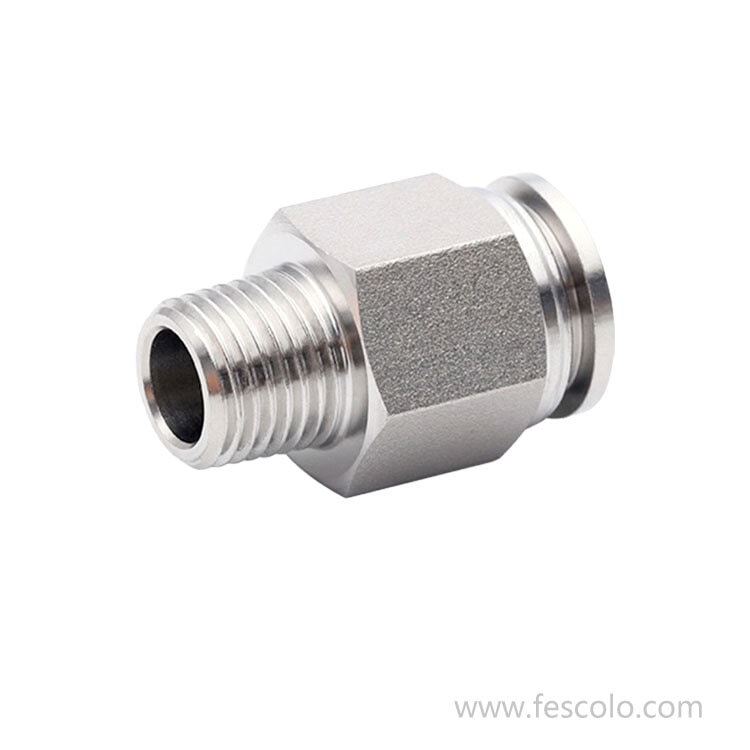

SPC Series Male Straight

SPC Series Male Straight


Characteristics:

 Support customization, OEM and ODM, CAD drawings can be provided according to customers' requirements.

 Each product will be inspected and cleaned via ultrasonic, and dried off before shipping.

 Most of parts are produced by automation equipments, each essential process is  checked by specialized inspectors in order to reach the requirements of tolerance and guarantee its quality.

 Varies of materials are available, such as 303,304,316,316L.

 Different thread types are available, such as BSP, PT, NPT, and metric thread.

 With ISO9001, CE and FDA certificates.


Inquire Now
  • Dimension
  • Details

Specification


ItemParameter
Working mediumAir, Steam, Water, Vacuum or other liquid
Pressure Range0~2.0MPa
Negative Range-100KPa
Proof  pressure3.0MPa
Ambient temperature-20~120℃
Material of bodySUS304, SUS316, SUS316L
Material of sealingFKM(Viton)
Applicable tubePU,PE,Nylon(pa),PVC and Teflon tubing




Ordering Code



SPC Series Male Straight


Fitting type(1)


CodeTypeCodeTypeCodeType
SPBMale T branchSPJPlug reducerSPPPlug
SPCMale straightSPKMultiple branchSPCFFemale straight
SPDMale T branchSPLMale 90° elbowSPUStraight union
SPET branchSPMBulkhead fittingSPV90° elbow
SPHBanjo FittingSPOCRound straightSPXMale Y branch
SPYY branchSPZACrossSPLFFemale elbow
SSCSpeed controlSSUSpeed controlSPMFBulkhead fitting



Tube O.D. (2)


Metric size04060810121416
Inch size1/8"5/32"1/4"5/16"3/8"1/2"



Thread size (3)


MetricBSPPTNPT
M5G01: G1/801: 1/8"PTN01:1/8"NPT
M6G02: G1/402: 1/4"PTN02:1/4"NPT
M8G03: G3/803: 3/8"PTN03:3/8"NPT
M10G04: G1/204: 1/2"PTN04:1/2"NPT
M12G06: G3/406: 3/4"PTN06:3/4"NPT
M14


M16


M18

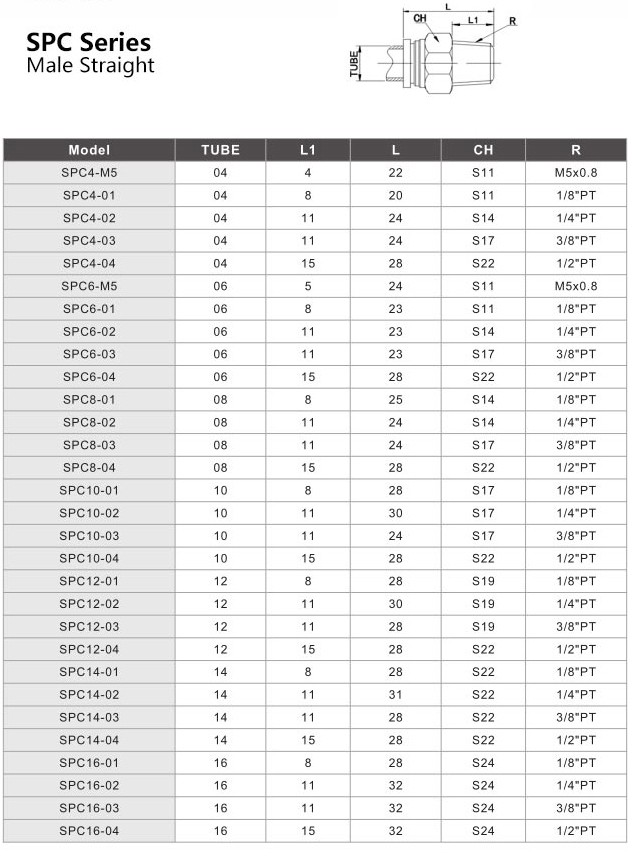

Dimension


SPC Series Male Straight
