Swing Cylinder

The swing cylinder is a pneumatic actuator that uses compressed air to drive the output shaft to reciprocate and rotate within a certain angle range. It is used for opening and closing of valves and arm movements of robots.

Swing cylinders can be divided into rack and pinion swing cylinders, vane swing cylinders and extension swing cylinders. Selection of the type According to the working requirements and conditions, the type of cylinder is correctly selected. If the cylinder is required to reach the end of the stroke without impact phenomenon and impact noise, a buffer cylinder should be selected; if light weight is required, a light cylinder should be selected;

If the installation space is narrow and the stroke is short, a thin cylinder can be selected; if there is lateral load, a cylinder with a guide rod can be selected; if high braking accuracy is required, a locking cylinder should be selected; the piston rod is not allowed to rotate, and the cylinder with the rod non-rotation function is optional ;In high temperature environments, heat-resistant cylinders should be used; in corrosive environments, corrosion-resistant cylinders should be used. In harsh environments such as dust, it is necessary to install a dust cover at the extended end of the piston rod. When no pollution is required, an oil-free or oil-free lubricated cylinder should be selected.

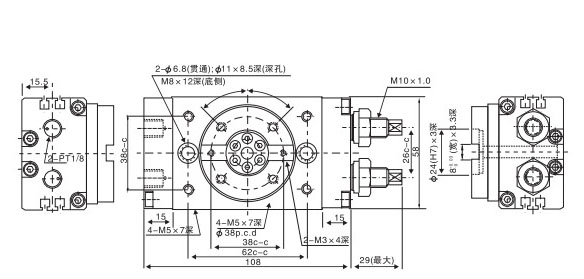

Swing cylinders are generally used in printing (tension control), semiconductors (spot welding machines, chip grinding), automation control, robots, etc. Common swing cylinders are: MSQ Series Rotary Table, CRQ2 Series Compact Rack&Pinion Rotary Table, CRA1 Series Rotary Table.
